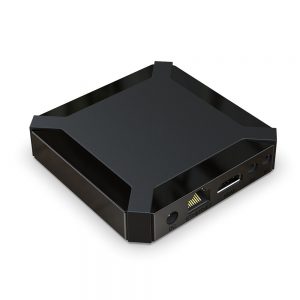

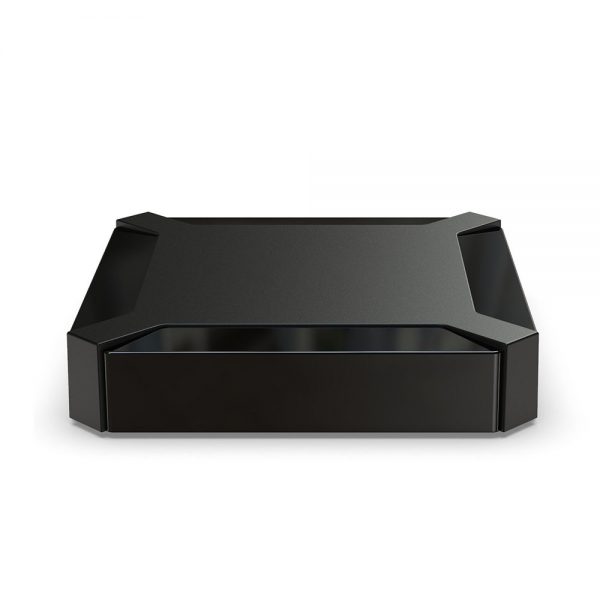

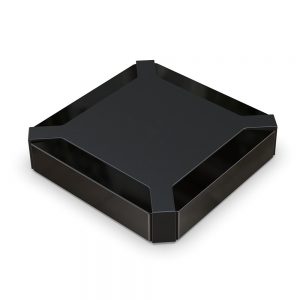

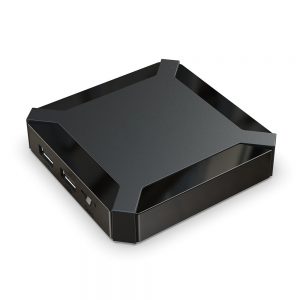

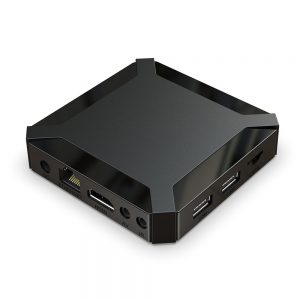

一款采用全志H313芯片方案的智能网络播放器，搭载开放的安卓10操作系统，支持主流格式的4K视频硬解码，支持4K输出。此款H313播放器主要作为电视机顶盒和数字标牌控播主机使用，可自由安装卸载软件，适配各种信发系统。此款H313网络播放器具有很高的性价比，非常适合运营商的大规模部署。产品已经量产，可根据需求定制产品，支持OEM和ODM定制，支持软件开发定制。
| CPU | Allwinner H313 Quad Core ARM Cortex A53 | |||||||
| GPU | G31 OPenGL3.2 | |||||||
| Memory | DDR3：1GB (Option: 2GB) | |||||||
| Flash | eMMC：8GB (Option:16GB ) | |||||||
| WiFi | IEEE 802.11 b/g/n | |||||||
| Moudle | Plastic : Black Color | |||||||
| I/O | 1*HDMI | 4K*2K UHD Output, HDMI 2.0A | ||||||
| 1*AV OUT | 480i/576i standard definition output | |||||||
| 2*USB | 1* USB Host Port ,1*USB Device | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| Power | DC 5V/2A；LED indicator，Working ：Blue; Standby：Red | |||||||
| Software | ||||||||
| OS | Android 10.0 | |||||||
| Video | – Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders – Support multi-video decoder up to 4K@60fps – Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding – Video/Picture Decoding – VP9 Profile-2 up to 4K@30fps – H.265 Main10@L5.1 up to 4K@60fps – AVS2 JiZhun 10bit Profile up to 4K@60fps – H.264 BP/MP/HP@L4.2 up to 4K@30fps – H.263 BP up to 1080P@60fps – MPEG-4 SP/ASP@L5 up to 1080P@60fps – MPEG-2 MP/HL up to 1080P@60fps – MPEG-1 MP/HL up to 1080P@60fps – Xvid up to 1080P@60fps – Sorenson Spark up to 1080P@60fps – VP8 up to 1080P@60fps – AVS/AVS+ JiZhun Profile up to 1080P@60fps – WMV9/VC1 SP/MP/AP up to 1080P@60fps – JPEG HFIF file format up to 45M PPS – Multiple language and multiple format sub-title video support – MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) – Supports JPEG thumbnail, scaling, rotation and transition effects – Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
|||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones |
|||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
| Apps | Apps download freely form android market、amazon app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||
| Packing | Product dimension | 88.4*88.4*18.6(mm) | ||||||
| Qty per unit packing | 1pcs | |||||||
| Unit packing: (LxWxH) | 170*115*55(mm) | |||||||
| Unit packing (G.W.) | 0.35Kg | |||||||
| Qty per export carton | 20PCS | |||||||
| Export carton (WxHxL) | 370*290*240 （mm） | |||||||
| Export carton (G.W.) | 7.5Kg | |||||||
| Accessories ： | ||||||||
| 1、HDMI cable *1 | ||||||||
| 2、IR Remote *1 | ||||||||
| 3、User Manual *1 | ||||||||
| 4、Package box *1 | ||||||||
| 5、Power adapter *1 | ||||||||
