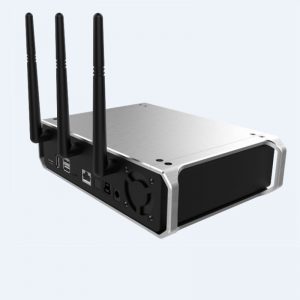

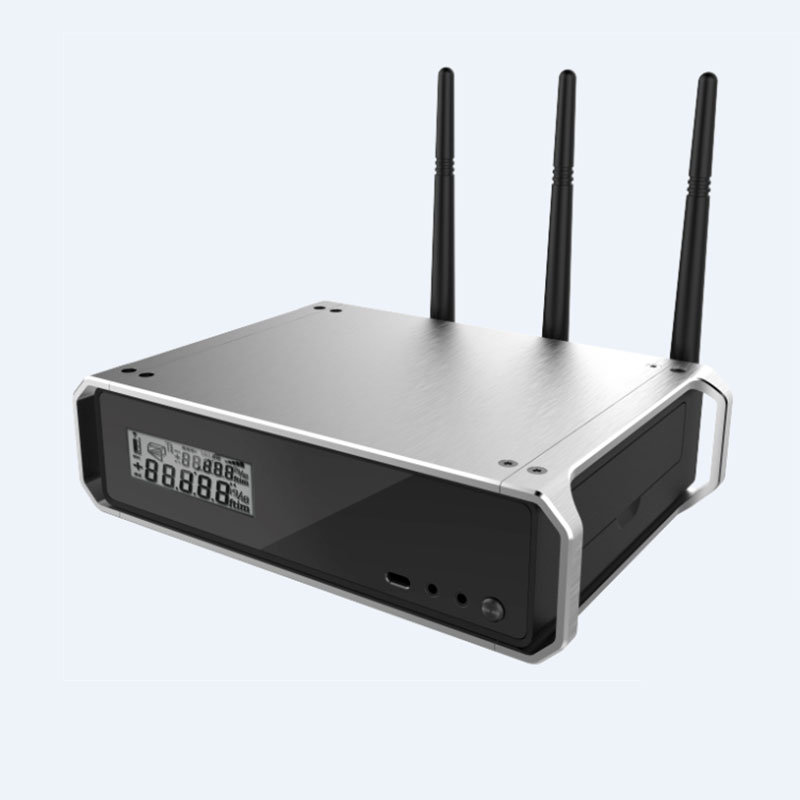

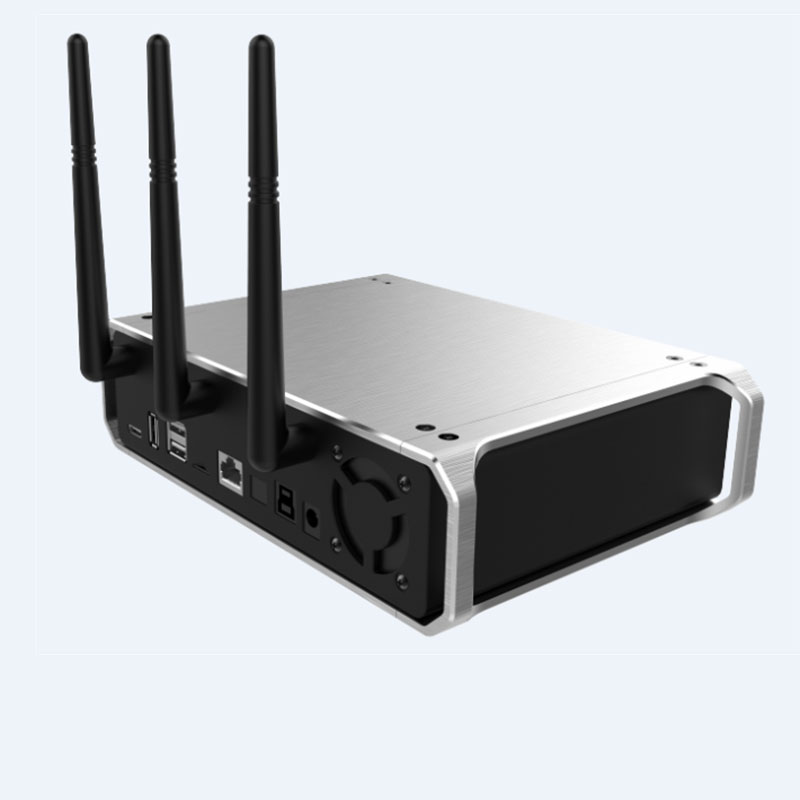

采用RK3399六核处理器打造的媒体服务器，可作为NAS使用，支持内置硬盘，支持高码率的4K视频硬解码。便准版采用安卓7.1系统，可定制Linux系统。内置高速WiFi模块，支持2.4+5.8GHz双频网络。支持USB3.0和Type-c接口，支持4K60帧的HDR输出。采用金属拉丝外壳，自带状态指示灯。产品支持OEM/ODM定制，超大的网路吞吐量，十分适合作为媒体分发服务器使用。
| Product Specification | |||||||
| Model No. : | RK3399-NASS | Model Name: | Personal Multi Media Terminal | Version: | |||
| Hardware Spec: | |||||||
| Operation System/操作系统 | Android 7.1 | ||||||
| Language/语言 | Chinese,English…Multi-Language support | ||||||
| Chipset/芯片组 | RK3399 28nm Dual Core Cortex-A72 + Quad Core Cortex-A53 | ||||||
| GPU/图形处理器 | Mali860 MP4 OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 Supports AFBC |
||||||
| SD RAM/运行内存 | DDRIII-2133 4G | Optional:2G | |||||
| Nand Flash/板载存储 | 32G | Optional:16G/64G | |||||
| Network/网络 | AP6359S，2.4GHz*2/5GHz*2 WiFi 802.11 a/b/g/n and 802.11 AC. Support LAN 10M/100M/1000M Base-T | AP+STA | |||||
| Bluetooth/蓝牙 | Support BT4.2 Module | ||||||
| Storage Extension/存储 | Support SATA, 2.5 Inch or 3.5 Inch,Max to 8TB MicroSD(TF) card，Max to 256GB |
||||||
| Power Supply/供电 | DC 12V/2A | DC 12V3A optional | |||||
| Interface: | |||||||
| HDMI Output/HDMI输出 | 1xHDMI (A type Female)， HDMI2.0, Support 4K×2K decode output | ||||||
| USB Port | USB3.0*1， Type-A*1， USB2.0*2 | ||||||
| Type-C | Support appointed VR sets | ||||||
| Fibre-optical Output/光纤音频输出 | 1xSPDIF | ||||||
| Card Reader/读卡器 | 1xTF | ||||||
| SATA/硬盘接口 | 1xSATA | ||||||
| Network port/网络 | 1xRJ45 | ||||||
| Power Supply/电源适配器 | 1xDC Jack | ||||||
| Antenna/天线 | WiFi external 5 db antenna *3 | ||||||
| Media Parameter: | |||||||
| Audio Container/音频支持: | Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode，Support Synchronized lyrics and full-page lyric display | ||||||
| Audio Out/音频输出 | HDMI output data directly, simulation R/L audio output, optical fiber digital audio output | ||||||
| Video Encoder/视频编码 | H.264,MOV,3GP RV, VP6/VP8, Sorenson Spark, MVC |
||||||
| Video Decoder/视频解码 | Full video format decoding support.Support format MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC | H.265 4096*2304 60fps H.264 4096*2304 60fps VP9 4096*2304 60fps MPG4 1920*1080 60fps |
|||||
| Video output/视频输出 | HDMI output： Support 4Kx2K ( 4096*2304) @60HZ HDR | ||||||
| H.265 Data Rate: | Up to 60fps | ||||||
| Image browser /图片浏览 | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8192*8192 | ||||||
| Text-Reading/文本 | upport TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install) | ||||||
| Software Extension/软件拓展 | Support Google Play & APK install | ||||||
| Protocol/协议支持 | Support DLNA,Miracast Protocol,Support DRM requirement.airplay Audio push | ||||||
| Remote Control/遥控 | Support Smart phone remote control、BT, 2.4GHZ wireless air mouse/Remote controller | ||||||
| IM Software/实时通讯软件 | Support Skype/QQ/MSN/GTALK (Depends on APK install) | ||||||
| Office Software/办公软件 | WORD/EXCEL/PDF(Depends on APK install) | ||||||
| Others Parameters | |||||||
| Operationg Temperature/运行温度: | -10~40℃ | ||||||
| Storage Temperature/存储温度: | -20~50℃ | ||||||
| Humidity environment/环境湿度: | 5%-90%(No condensation) | ||||||
| Certification | |||||||
| Package | |||||||
| Dimension | |||||||
| Net Weight | |||||||
| Carton Box Size | |||||||
| Accessory List | |||||||
| 1.Standard Package: 1xManual、1xAdapter(DC 5V/3A),1xHDMI Cable,1x IR Remote Controller,1xUSB line. 2.Optional Package: 1×2.4G Air Mouse, 1×2.4G Wireless mouse and keyboard. |
|||||||
