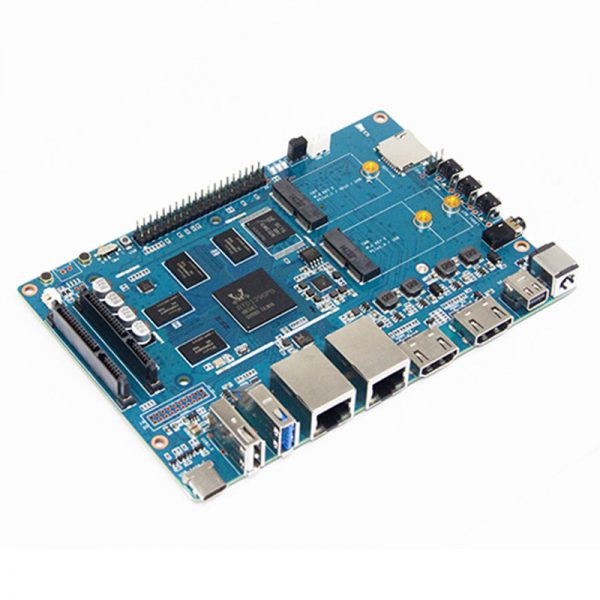

一款RTD1296芯片方案的嵌入式主机，支持安卓和Linux等多个操作系统，支持OpenWRT系统。功能接口丰富，适合作为媒体播放器和网络服务类项目的开发板使用。瑞昱的RTD1296芯片原生支持HDMI输入功能，适用于视频信号叠加的场景，可作为广告插播器使用。ScenSmart专业从事方案运作，可为用户裁剪、拓展产品的功能模块。
RTD1296嵌入式主机规格参数：
| Soc | Realtek RTD1296 quad-core ARM A53 |
| GPU | Mali T820 MP3 GPU |
| SDRAM | 2GB DDR4 \(shared with GPU\) |
| Power | 12V @ 2A via DC power |
| Low-level peripherals | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| Onboard Network | 2x 10/100/1000Mbps Ethernet |
| Wifi/Bluetooth | **Option** ,not support onboard WIFI & BT |
| RGMII | 1 RGMII interface with PIN |
| On board Storage | MicroSD \(TF\) card; 2 native SATA 3 6Gbps ;eMMC;SIM card slot |
| Display | HDMI \(Type A\) output with HDCP 1.4, resolutions up 1920×1200； MIPI DP |
| Video decoder/encode | The Video DSP of RTD1296 is dedicated to manipulating,decoding and encoding of video streams in various formats, e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,AVS,AVS Plus,HD jpeg,etc.Video decoding and encoding can run simultaneously. support 3D de-intrlacing,video scaling up to 4K2K and so on. |
| Aideo decoding | Audio decoding is carried out by an Audio DSP that is capable of decoding a set of audio formats,e.g. DTS HD,Dolby Digital Plus,TrueHD,and other popular formats.the Audio DSP also performs audio post processing |
| Audio | support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in |
| HDMI Out/In | 1* HDMI 2.0a out port and 1* HDMI 2.0a In port |
| Audio outputs/Inputs | HDMI, I2S audio,Audio micro out, Audio out/in with PIN define |
| M.2 KEY E：PCIE 2.0/USB 2.0 | 1 pcie 2.0 interface |
| M.2 KEY E:PCIe 1.1 / SDIO / USB 2.0 | 1 pcie 1.1 and SDIO interface |
| USB 3.0 | 1x USB 3.0 host |
| USB 2.0 | 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN |
| M.2 KEY B | 1 * M.2 interface USB 2.0 for 4G with Micro SIM card slot |
| Mini DP | 1* Mini DP |
| TYPE C | 1 type C interface |
| RTC battery | RTC battery power interface |
| Buttons | Reset button, Power button, U-boot button |
| Leds | Red, Green, Blue |
| Other | IR receiver |
| Sizes | 148 mm × 100.5mm |
| Weight | 100g |
