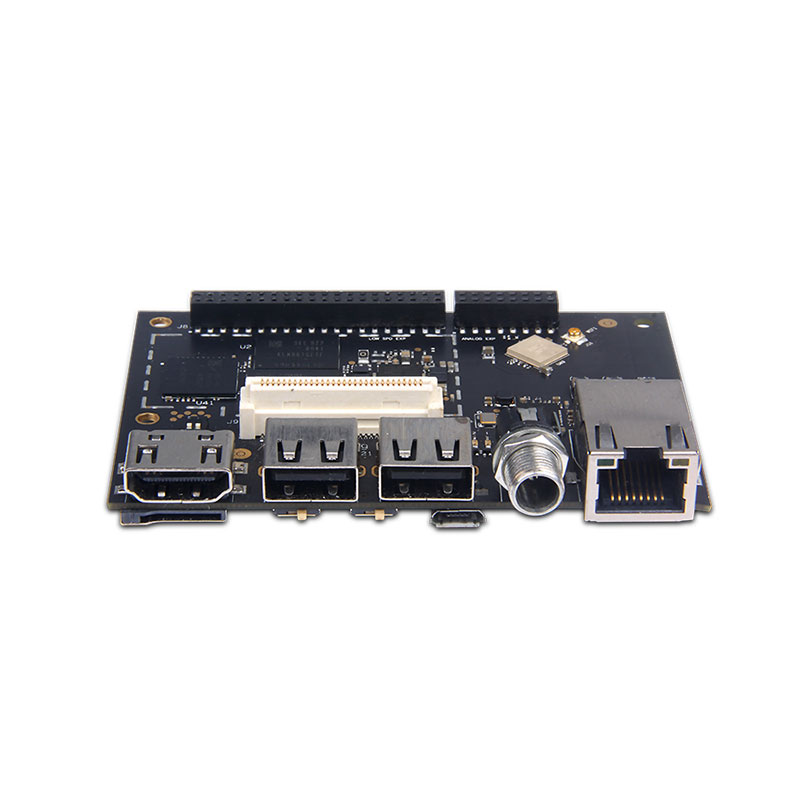

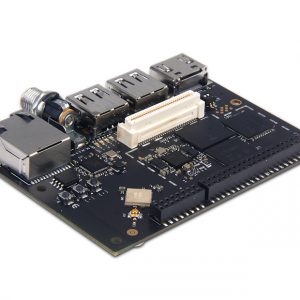

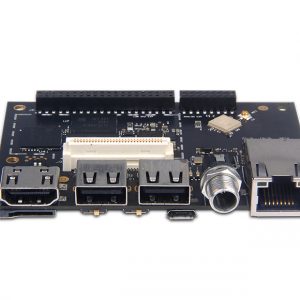

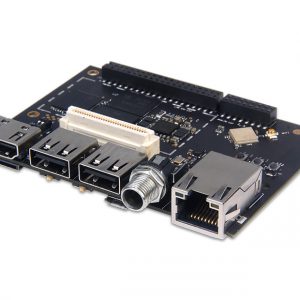

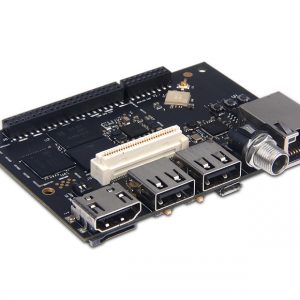

一款96boards规范的高通骁龙410C开发板，采用骁龙410E处理器，支持安卓、Linux、Windows core系统，应用范围十分广泛，非常适合物联网项目的嵌入式系统开发。嵌入式主机板载常用接口，到手可用，也可通过连接器拓展接口。ScenSmart专业从事方案运作，可根据客户需求定制产品，支持软硬件定制，为客户提供一站式产品解决方案。
Product Specification
CPU Snapdragon 410E, Quad core
GPU Qualcomm® Adreno™ 306
CPU Frequency 1.2GHz
Internal Memory 1GB/2GB LPDDR3 533MHz
Internal Storage 8GB/16GB eMMC 5.0
OS
Android 6.0 ,Linux based on Debian ,Windows 10 IoT core
Bluetooth 4.1
Built-in WiFi WLAN 802.11 b/g/n/ac
Ethernet port RJ45 10/100/1000Mbps
RTC Yes
GPS Yes
USB Interface
2x USB 2.0 type A (host mode only),1x
USB 2.0 micro B (device mode only)
Micro SD Card Slot 1
Display
HDMI 1.3 – HDMI full-size type A
connector (1080p HD @ 30 fps),
1x MIPI-DSI 4-lane, up to 720p 60fps or
1080p 30fps for optional display/touch
Expansion connector
1x 96boards 40 pin Low-Speed connector
• UART, SPI, I2S, I2C x2, GPIO x12, DC power
1x 96boards 60 pin High-Speed connector
• 4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI
Footprint for one optional 16-pin Analog
expansion connector
• Headset, Speaker, FM antenna
Size (mm) 85 X 60mm
Operating Temp -10°C to +85°C
Power +6.5V to +18V
