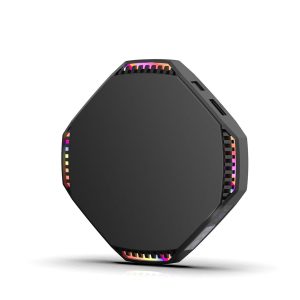

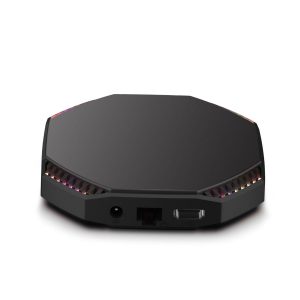

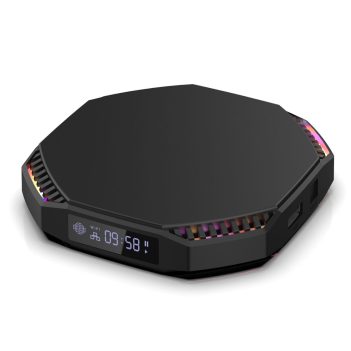

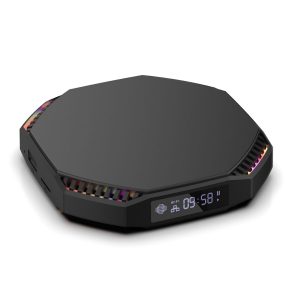

2021年新款采用瑞芯微RK3566芯片方案的智能网络机顶盒。RK3566采用四核A55处理器，集成G52图形处理器，编解码性能强悍。内置独立的NPU，可提供0.8TOPS算力支持，满足轻量化的人工智能应用需求。此款网络机顶盒运行最新的安卓11操作系统，可根据用户需求定制系统，支持Linux系统调试。可根据需求定制产品，支持OEM和ODM定制。
RK3566智能机顶盒主要规格参数参数：
| Item | Description | |
| Packing | Product size | 112*112*22 mm |
| Packaged weight | 0.4kg | |
| Loading for 20HQ | 43.5*30*30.5 cm | |
| Product Color | Black | |
| Hardware configuration | CPU | RK3566 Quad core 64-bit Cortex-A55 Frequency:1.8GHZ |
| GPU | Mali-G52-2EE,Supports OpenGL ES 3.2/2.0/1.0 | |
| FLASH | 32GB/64GB/128GB | |
| SDRAM | 4GB/6GB/8GB | |
| WIFI/BT | 2.4GHZ&5GHZ WIFI, BT 4.0 | |
| ETHERNET | Standard 10/100/1000M RJ-45 | |
| HD | HD 2.0 , 4Kx2K@60fps max resolution output | |
| USB host | Universal Serial Bus 2.0 *1, High speed USB3.0 *1 | |
| SPDIF | Audio Digital Interface | |
| Card reader | TF card | |
| Power Supply | Power Supply | DC 5V/2A |
| CPU Engine | 2D | Hardware 2D graphics acceleration |
| Video Decoder | •H.265 HEVC/MVC Main10 yuv420@L5.1 up to 4096×2304@60fps
•H.264 AVC/MVC Main10 yuv400/yuv420/yuv422/@L5.1 up to 4096×2304@60fps •VP9 0/2 yuv420@L5.1 up to 4096×2304@60fps •VP8 verision2,up to 1920×1088@60fps •VC1 Simple @low, medium, high levels, Main @low, medium, high levels, Advanced @level0~3,up to 1920×1088@60fps •MPEG-4 Simple @L0~6,Advanced Simple @L0~5,up to 1920×1088@60fps •H.263 0,levels 10-70,up to 720×576@60fps |
|
| Video Encoder | •H.264/AVC BP/MP/HP@level4.2，up to 1920×1080@100fps
•H.265/HEVC MP@level4.1, up to 1920×1080@100fps (4096×4096@10fps with TILE) •Support YUV/RGB video source with rotation and mirror |
|
| JPEG decoder |
•Decoder size is from 48×48 to 65536×65536 •Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 •Support 1920×1080@120fps •Support MJPEG |
|
| Software Specifications | OS | Android 11.0 |
| HDD file system | FAT16/FAT32/NTFS | |
| Languages | English/French/German/Spanish/Italian/ etc multilateral languages | |
