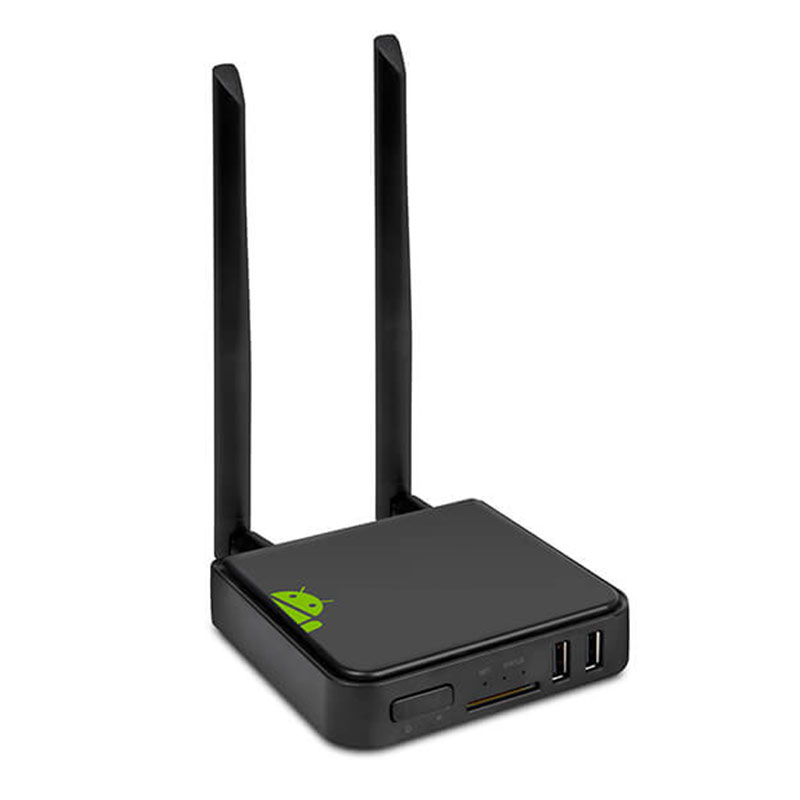

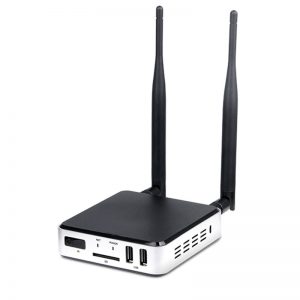

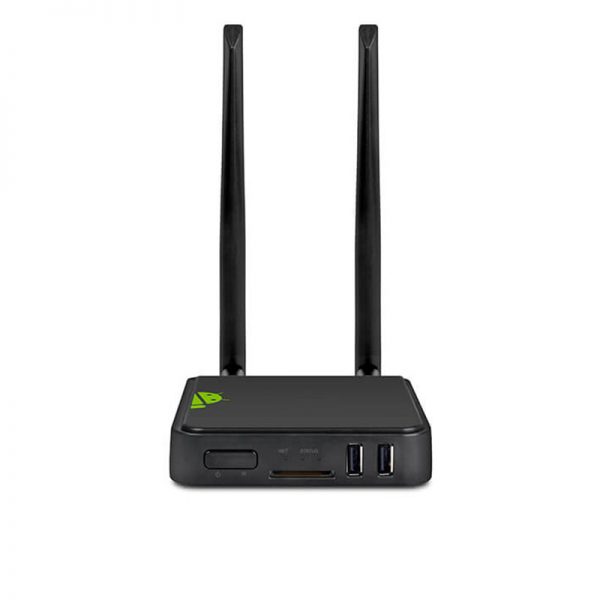

一款采用高通芯片的4G LTE安卓智能电视盒子，产品已经量产，可提供OEM和ODM定制服务。
Graphics
Adreno™ 304; 3D graphics accelerator
Up to 400 MHz
Up to 400 MHz
WAN air interfaces
GSM/GPRS/EDGE
CDMA2000® 1x, 1x Advanced, and 1xEV-DOrA
WCDMA R99 to Rel 9 DC-HSPA+ (42 Mbps)
TD-SCDMA with 4.2 Mbps DL and 2.2 Mbps UL option
LTE Cat 4, including 2 x 10 MHz carrier aggregation
CDMA2000® 1x, 1x Advanced, and 1xEV-DOrA
WCDMA R99 to Rel 9 DC-HSPA+ (42 Mbps)
TD-SCDMA with 4.2 Mbps DL and 2.2 Mbps UL option
LTE Cat 4, including 2 x 10 MHz carrier aggregation
Audio Decoder
PM8909/PM8916 -1 audio required Low power audio for mp3 and AAC playback;
surround sound Versatile – many audio playback &voice modes; encoders for audio &FM recording; many concurrency modesG711;
Raw PCM; QCELP;EVRC, -B, -WB; AMR-NB, -WB;
GSM-EFR, -FR, -HR MP3; AAC+, eAAC;
AMR-NB, -WB, G.711, WMA 9/10 Pro
Dolby Digital Plus and DTS-HD surround sound
Fluence™ Noise Cancellation
QAudioFX™/Qconcert™/QEnsemble
128-voice polyphony wavetable
surround sound Versatile – many audio playback &voice modes; encoders for audio &FM recording; many concurrency modesG711;
Raw PCM; QCELP;EVRC, -B, -WB; AMR-NB, -WB;
GSM-EFR, -FR, -HR MP3; AAC+, eAAC;
AMR-NB, -WB, G.711, WMA 9/10 Pro
Dolby Digital Plus and DTS-HD surround sound
Fluence™ Noise Cancellation
QAudioFX™/Qconcert™/QEnsemble
128-voice polyphony wavetable
Video/Picture Decoder
H.264 BP/MP – 1080p, 30 fps
MPEG-4 SP / H.263 P0 – WVGA, 30 fps
VP8 – WVGA, 30 fps H.264 BP/MP/HP – RES, 30 fps MPEG-4 SP/ASP – RES, 30 fps DivX 4x/5x/6x – RES, 30 fps H.263 P0 – WVGA, 30 fps VP8 – RES, 30 fps(HEVC) H.265 MP 8-bit – RES, 30 fps
MPEG-4 SP / H.263 P0 – WVGA, 30 fps
VP8 – WVGA, 30 fps H.264 BP/MP/HP – RES, 30 fps MPEG-4 SP/ASP – RES, 30 fps DivX 4x/5x/6x – RES, 30 fps H.263 P0 – WVGA, 30 fps VP8 – RES, 30 fps(HEVC) H.265 MP 8-bit – RES, 30 fps
Optional Remote Controller
2.4G wireless Remote Controller with Nano receiver
USB wire/wireless Mouse & Keyboard
USB wire/wireless Mouse & Keyboard

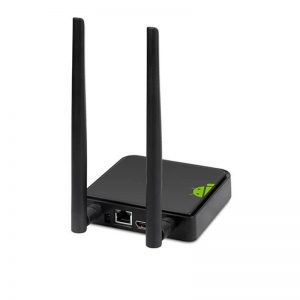

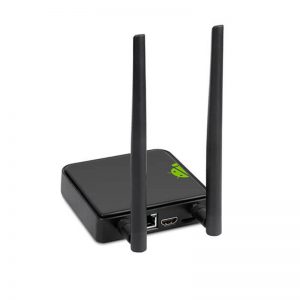

4G LTE电视盒子接口示意图
Specification
- CPU
- Qualcomm Quad Core ARM Cortex-A7 microprocessor cores up to 1.1 GHz
- GPU
- QDSP6 v5 core at up to 691 MHz
- RAM
- 2G DDR3
- ROM
- 8G EMMC
- OS
- Android OS 6.0
- Optional
- DOLBY
- USB
- USB2.0 x2
- HDMI
- V2.0
- DC Input
- 5.0V-2A
- Micro SD Slot
- Max: 32G
- Video Output
- HDMI
- Audio Output
- HDMI
- LAN
- RJ45 10/100M/(1000M Optional) Ethernet interface
- WiFi
- IEEE 802.11 b/g/n, 2.4G (5.8G Optional)
- IR Receiver
- IR Remote
- 3G/4G
- Built-in CDMA, WCDMA, GSM, TD-SCDMA, LTE
- BT
- Optional
- Size
- 108x104x28mm
- Net Weight
- 180g
- Power Adapter AC
- AC100 ～ 240V 50/60Hz
Accessories
1 X HDMI Cable
1 X Manual
1 X Power Adapter
1 X 2.4G Remote Control
1 X Manual
1 X Power Adapter
1 X 2.4G Remote Control
