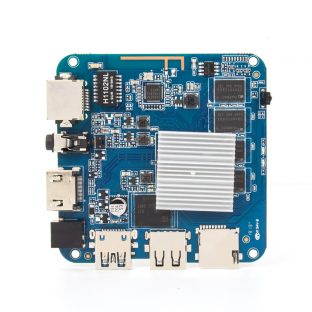

Rockchip RK3318 芯片简介

1.1 Overview

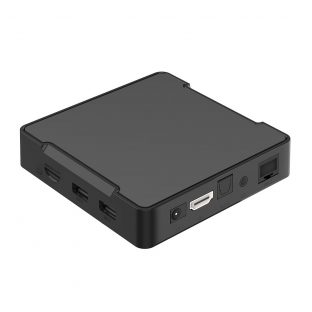

RK3318 is a high-performance Quad-core application processor designed for Smart STB(Set Top Box) including OTT/IPTV/DVB. It is a high-integration and cost efficient SOC for 4K HDR STB.
Quad-core Cortex-A53 is integrated with separate Neon and FPU coprocessor, also with shared L2 Cache. The Quad-core GPU supports high-resolution display and game.
Lots of high-performance interface to get very flexible solution, such as multi-channel display including HDMI2.0a and TV Encoder (CVBS). TrustZone and crypto hardware are
integrated for security. 32bits DDR3/DDR3L/DDR4/LPDDR3 provides high memory andwidth.
1.2 Features
The features listed below which may or may not be present in actual product, maybe subject to the third-party licensing requirements. Please contact Rockchip for actual product feature configurations and licensing requirements.
1.2.1 Microprocessor
 Quad-core ARM Cortex-A53 CPU
 Full implementation of the ARM architecture v8-A instruction set
 ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation
 ARMv8 Cryptography Extensions
 In-order pipeline with symmetric dual-issue of most instructions
 Unified system L2 cache
 Include VFP v3 hardware to support single and double-precision operations
 Integrated 32KB L1 instruction cache, 32KB L1 data cache with 4-way set associative
 TrustZone technology support
 Full CoreSight debug solution
 One separate power domains for CPU core system to support internal power switch and externally turn on/off based on different application scenario
 PD_A53: Cortex-A53 + Neon + FPU + L1 I/D Cache of core 2/3
 One isolated voltage domain to support DVFS
1.2.2 Memory Organization
 Internal on-chip memory
 BootROM
 Internal SRAM
 External off-chip memory①
 DDR3/DDR3L/LPDDR3/DDR4
 SPI Flash
 eMMC
 SD
1.2.3 Internal Memory
 Internal BootRom
 Support system boot from the following device:
 SPI Flash interface
 eMMC interface
 SDMMC interface (SDMMC0 only)
RK3318 Datasheet Rev 1.0
 Support system code download by the following interface:
 USB OTG interface (Device mode)
 Internal SRAM
 Size: 36KB
1.2.4 External Memory or Storage device
 Dynamic Memory Interface (DDR3/DDR3L/LPDDR3/DDR4)
 Compatible with JEDEC standards
 Compatible with DDR3-1866 / DDR3L-1866 / LPDDR3 / DDR4
 Support 32-bit data width, 2 ranks (chip selects), max 4GB addressing space per rank; total addressing space is 4GB(max) also
 Programmable timing parameters to support SDRAM from various vendors
 Low power modes, such as power-down and self-refresh for SDRAM
 Compensation for board delays and variable latencies through programmable pipelines
 Programmable output and ODT impedance with dynamic PVT compensation
 eMMC Interface
 Compatible with standard iNAND interface
 Compatible with eMMC specification 4.41, 4.51, 5.0 and 5.1
 Support block size from 1 to 65535Bytes
 Support three data bus width: 1-bit, 4-bit or 8-bit
 Support up to HS200; but not support CMD Queue and HS400
 SD/MMC Interface
 There are 2 SD/MMC interface
 Compatible with SD3.0, MMC ver4.51
 Support block size from 1 to 65535Bytes
 Data bus width is 4bits
1.2.5 System Component
 CRU (clock & reset unit)
 Support clock gating control for individual components
 One oscillator with 24MHz clock input
 Support global soft-reset control for whole SoC, also individual soft-reset for each component
 Timer
 Six 64bits timers with interrupt-based operation for non-secure application
 Two 64bits timers with interrupt-based operation for secure application
 Support two operation modes: free-running and user-defined count
 Support timer work state checkable
 PWM
 Four on-chip PWMs with interrupt-based operation
 Programmable pre-scaled operation to bus clock and then further scaled
 Embedded 32-bit timer/counter facility
 Support capture mode
 Support continuous mode or one-shot mode
 Provides reference mode and output various duty-cycle waveform
 Watchdog
 32-bit watchdog counter
 Counter counts down from a preset value to 0 to indicate the occurrence of a timeout
 WDT can perform two types of operations when timeout occurs:
RK3318 Datasheet Rev 1.0
 Generate a system reset
 First generate an interrupt and if this is not cleared by the service routine by the time a second timeout occurs then generate a system reset
 Programmable reset pulse length
 Totally 16 defined-ranges of main timeout period
 Interrupt Controller
 Support 3 PPI interrupt source and 128 SPI interrupt sources input from different components
 Support 16 software-triggered interrupts
 Two interrupt outputs (nFIQ and nIRQ) separately for each Cortex-A53, both are low-level sensitive
 Support different interrupt priority for each interrupt source, and they are always software-programmable
 Trust Execution Environment system
 Support TrustZone technology for the following components
 Cortex-A53, support security and non-security mode, switch by software
 BUS_DMAC, support some dedicated channels work only in security mode
 Secure OTP, only can be accessed by Cortex-A53 in secure mode
 Internal memory, part of space is addressed only in security mode, detailed size is software-programmable together with TZMA (TrustZone memory adapter)
 Cipher engine
 Support AES 128/192/256
 Supports the DES (ECB and CBC modes) and TDES (EDE and DED) algorithms
 Supports MD5, SHA-1 and SHA-256 HASH algorithms
 Support PKA(RSA) 512/1024/2048 bit Exp Modulator
 Support 160-bit Pseudo Random Number Generator (PRNG)
 Support 256-bit True Random Number Generator (TRNG)
 Support secure OTP
 Support secure boot
 Support secure debug
 Support secure OS
1.2.6 Video CODEC
 Video Decoder
 MMU embedded
 Real-time decoding of MPEG-1/2/4, H.264, H.265/HEVC, VC-1,
 H.264/AVC Base/Main/High profile @ level 5.1; up to 4Kx2K @ 30fps
 H.265/HEVC Main profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
 VP9, up to 4Kx2K @ 60fps
 VP8, up to 1080P @ 60fps
 MPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps
 MPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps
 MPEG-4, ISO/IEC 14496-2, SP@L0-3, ASP@L0-5, up to 1080P @ 60fps
 VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps
 MVC is supported based on H.264 or H.265, up to 1080P @ 60fps
 H.264 Video Encoder
 Support video encoder for H.264 at BP/MP/HP @ level4.2
 Resolution and frame rate are up to 1920×1080 @ 30FPS②
 1x1080p @ 30fps or 2x720p @ 30fps encoding
 Only support I and P slices, not B slices
RK3318 Datasheet Rev 1.0
1.2.7 Audio CODEC
 MP3, AAC, WMA, FLAC, OGG, Dolby Digital, Dolby Digital Plus
1.2.8 JPEG CODEC
 JPEG decoder
 Decoder size is from 48×48 to 8176×8176(66.8Mpixels)
 Support JPEG ROI (region of image) decode
 Embedded memory management unit(MMU)
1.2.9 Image Enhancement Processor (IEP)
 Data format support
 BT601_l/BT601_f/BT709_l/BT709_f color space conversion
 YUV up/down sampling
 De-interlace
 Max resolution is up to 1920×1080
 Configurable high frequency de-interlace
 I4O2 (Input 4 field, output 2 frame) /I4O1B/I4O1T/I2O1B/I2O1T mode
1.2.10 Graphics Engine
 3D Graphics Engine:
 OpenGL ES 1.1 and 2.0, OpenVG1.1
 2D Graphics Engine:
 Support Pixel Format conversion between BT.601 and BT.709
 Max resolution is 3840×2160
 BitBLT, operation with two data source
 Color fill with gradient fill, and pattern fill
 High-performance scaling and rotation concurrently
 Monochrome expansion for text rendering
 New comprehensive per-pixel alpha (color/alpha channel separately)
 Alpha blending modes including Java 2 Porter-Duff compositing blending rules,chroma key, pattern mask, fading
 Dither operation
 0, 90, 180 and 270-degree rotation
 x-mirror and y-mirror rotation operation
1.2.11 Video input interface
 TS interface
 Support one TS input channel (serial mode or parallel mode)
 Support 4 TS input mode: sync/valid mode in the case of serial TS input，nosync/valid mode, sync/valid, sync/burst mode in the case of parallel TS input
 Supports 2 TS sources: demodulators and local memory
 Supports one PTI (Programmable Transport Interface):
 64 PID filters
 TS descrambling with 16 sets of Control Word under CSA v2.0 standard
 16 PES/ES filters with PTS/DTS extraction and ES start code detection
 4/8 PCR extraction channels
 64 Section filters with CRC check, and three interrupt mode: stop per unit, fullstop,recycle mode with version number check
 PID done and error interrupts for each channel
 PCR/DTS/PTS extraction interrupt for each channel
 Supports 1 PVR (Personal Video Recording) output channel
 1 built-in multi-channel DMA Controller
RK3318 Datasheet Rev 1.0
 Independent MMU for this module
 Camera Interface
 Support up to 5M pixels
 8bits BT656(PAL/NTSC) interface
 YUV422 data input format with adjustable YUV sequence
 YUV422, YUV420 output format with separately Y and UV space
 Support static histogram statistics and white balance statistics
 Support image crop with arbitrary windows
 Support scale up/down from 1/8 to 8 with arbitrary non-integer ratio
1.2.12 Display interface
 Display interface
 Support HDMI 2.0a output up to 4K@60Hz
 TV interface: TV encoder and DAC for CVBS
 HDMI
 Compliant with HDMI 2.0a
 Support up to 4k x 2k @ 60Hz
 Support 3D video formats
 Support 4K P60 YCbCr444, YCbCr422, YCbCr420 in 10-bit and 12-bit display
 Support HDCP 1.4 and 2.2
 TV out interface
 10-bit resolution DAC
 Composite (CVBS) output
 480i/576i standard definition output
1.2.13 Video Output Processor
 There is one VOP (Video Output Processor)
 24-bit (RGB888 YCbCr444), 30-bit (RGB101010, YCbCr 420, YCbCr 444)
 Max output resolution 4K for HDMI, 480i/576i for CVBS
 4 display layers:
 Display layers: Win0, Win1, HWC and background
 One background layer with programmable 24bits color
 There are two OSD/video layers (win0/win1)
 RGB888, ARGB888, RGB565, YCbCr422, YCbCr420, YCbCr444,YCbCr 420 10bit，YCbCr 422 10bit，YCbCr 444 10bit
 maximum resolution is 4096×2304, support virtual display
 1/8 to 8 scaling up/down engine with arbitrary non-integer ratio
 256 level alpha blending (pre-multiplied alpha support)
 Support transparency color key
 Support BG, RG, RB swap, x/y mirror
 Support TV Encoder for PAL and NTSC
 YCbCr2RGB(rec601-mpeg/rec601-jpeg/rec709)
 YCbCr2RGB(BT2020)
 RGB2YCbCr(BT601/BT709)
 RGB2YCbCr(BT2020)
 Conversion between BT2020 and BT709/601
 Win0 and Win1 layer overlay exchangeable
 Support replication (16bits to 24bits) and dithering (24bits to 16bits/ 18bits) operation
 Blank and blank display
 HDR is supported with HDR10 and HLG modes
 Support tone mapping between HDR and SDR, including HDR2SDR and SDR2HDR
RK3318 Datasheet Rev 1.0
1.2.14 Audio Interface
 I2S0/I2S1 with 8ch
 I2S0/I2S1 supports up to 8 channels (8xTX or 8xRX)
 I2S0 is connected to HDMI internally, while I2S1 is for external device
 Audio resolution from 16bits to 32bits
 Sample rate up to 192KHz
 Provides master and slave work mode, software configurable
 Support 3 I2S formats (normal, left-justified, right-justified)
 Support 4 PCM formats (early, late1, late2, late3)
 I2S and PCM mode cannot be used at the same time
 I2S2/PCM with 2ch
 Up to 2 channels (2xTX and 2xRX)
 Audio resolution from 16bits to 32bits
 Sample rate up to 192KHz
 Provides master and slave work mode, software configurable
 Support 3 I2S formats (normal, left-justified, right-justified)
 Support 4 PCM formats (early, late1, late2, late3)
 I2S and PCM cannot be used at the same time
 PDM
 Up to 8 channels
 SPDIF
 Support two 16-bit audio data store together in one 32-bit wide location
 Support bi-phase format stereo audio data output
 Support 16 to 31-bit audio data left or right justified in 32-bit wide sample data buffer
 Support 16, 20 and 24-bit audio data transfer in linear PCM mode
 Support non-linear PCM transfer
 Audio codec
 24bit DAC
 Support Line-out
 Support Mono, Stereo
 Integrated digital interpolation and decimation filter
 Sampling rate of 8kHz/12kHz/16kHz/24kHz/32kHz/44.1KHz/48KHz/96KHz
1.2.15 Connectivity
 SDIO interface
 Compatible with SDIO 3.0 protocol
 4bits data bus widths
 Smart Card
 support card activation and deactivation
 support cold/warm reset
 support Answer to Reset(ATR) response reception
 support T0 for asynchronous half-duplex character transmission
 support T1 for asynchronous half-duplex block transmission
 support automatic operating voltage class selection
 support adjustable clock rate and bit (baud) rate
 support configurable automatic byte repetition
 Ethernet PHY
 Integrated IEEE 802.3/802.3u compliant 10/100Mbps Ethernet PHY
 Supporting both full and half duplex for either 10 or 100 Mb/s data rate
RK3318 Datasheet Rev 1.0
 Auto MDIX capable
 Supports wake-on-LAN, EEE
 100Base-FX support
 Supports auto-negotiation
 USB 2.0
 Built-in 2 USB 2.0 interfaces, one supports OTG
 Compatible with USB 2.0 specification
 Supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) mode
 Provides 16 host mode channels
 Support periodic out channel in host mode
 SPI interface
 Support serial-master and serial-slave mode, software-configurable
 Support 1 chip-select output in serial-master mode
 I2C interface
 Support 7bits and 10bits address mode
 Software programmable clock frequency
 Data on the I2C-bus can be transferred at rates of up to 100 kbit/s in the Standardmode,up to 400 kbit/s in the Fast-mode or up to 1 Mbit/s in Fast-mode Plus.
 UART Controller
 Embedded two 64-byte FIFO for TX and RX operation respectively
 Support 5bit,6bit,7bit,8bit serial data transmit or receive
 Standard asynchronous communication bits such as start, stop and parity
 Support different input clock for UART operation to get up to 4Mbps or another special baud rate
 Support auto flow control mode
 One IR remote controller input channel
1.2.16 Others
 Multiple group of GPIO
 All of GPIOs can be used to generate interrupt to CPU
 Temperature Sensor(TS-ADC)
 The SAR ADC up to 50KS/s sampling rate
 -20~120℃ temperature range and 5℃ temperature resolution
 OTP
 Support standby mode
 Provide inactive mode, VP must be 0V or Floating in this mode.
 Package Type
 TFBGA395L (body: 14mm x 14mm; ball size: 0.3mm; ball pitch: 0.65mm)

RK3318 Datasheet Rev 1.0
