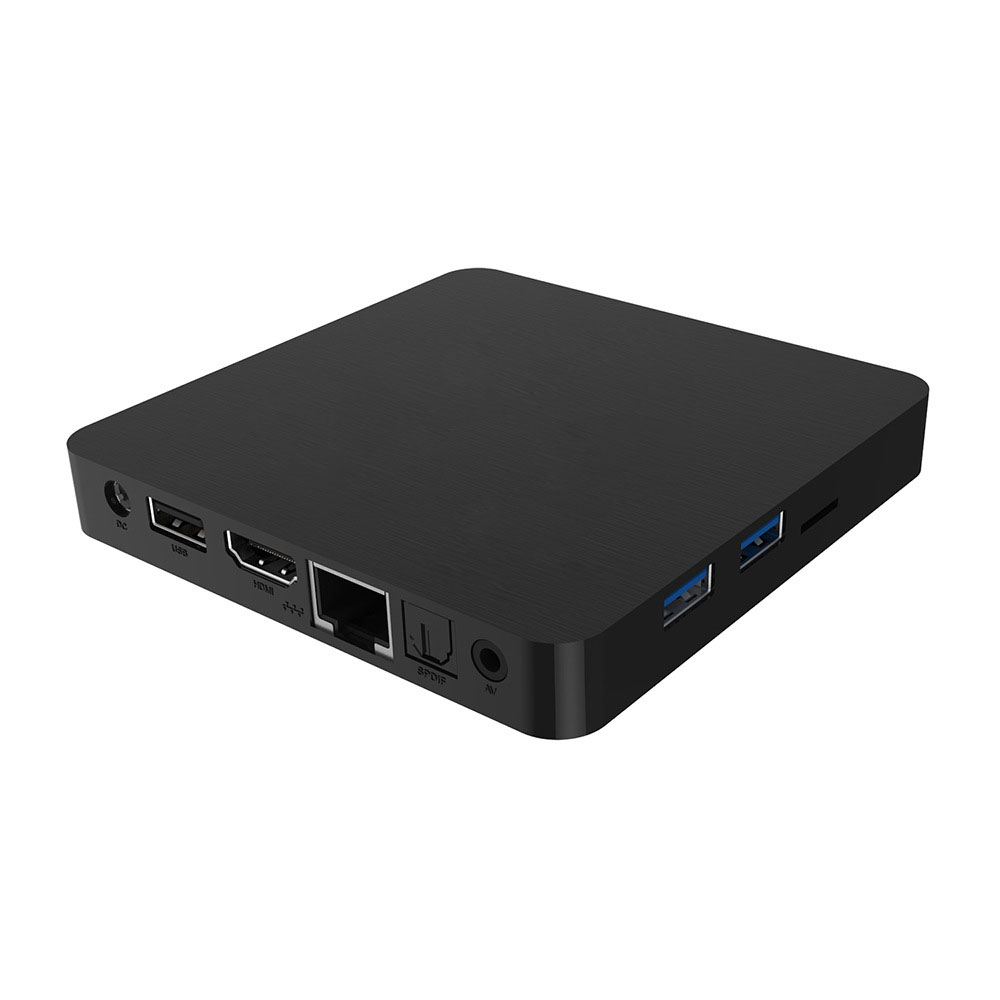

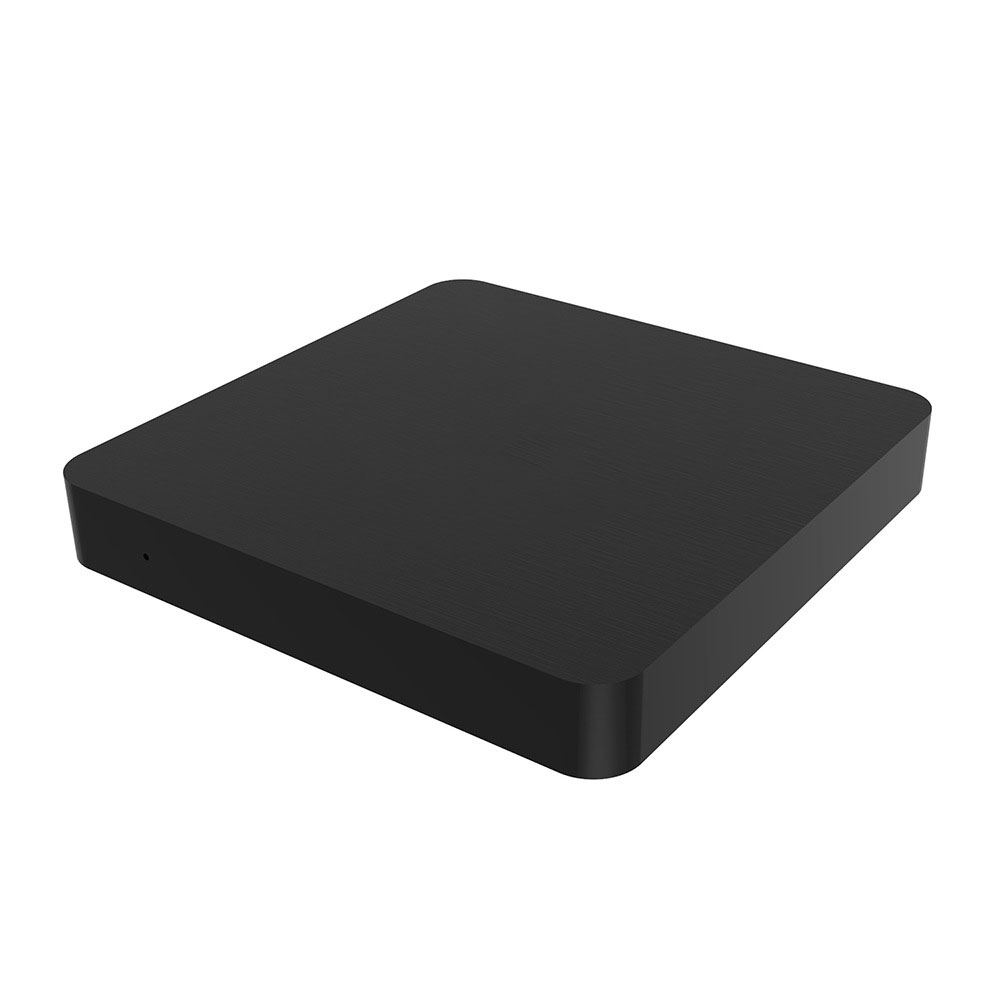

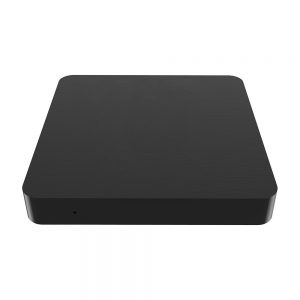

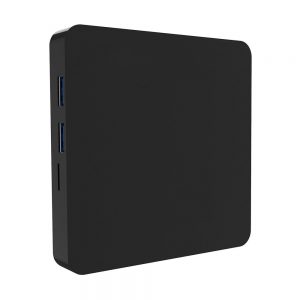

2019年新款Amlogic S922X六核智能网络播放器，运行安卓9.0系统，可自由安装卸载软件。S922X是晶晨推出的旗舰芯片，采用四个Cortex-A73大核+两个Cortex-A53小核的设计，采用12nm工艺制程，搭载G52 MP6六合图形处理器。支持全格式的4K视频，并且支持HDMI2.1传输标准。产品已经量产，可根据用户需求定制产品，支持OEM和ODM订单。
Amlogic S922X六核安卓智能播放器主要规格参数：
|
Item |
Description |
||
| Dimension | 108mm*108mm*16mm | ||
| Weight | Only Device 0.19 kg | ||
| With Accessories kg | |||
| CPU | S922X Quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 processor | ||
| Graphics | Hexa-core ARM G52 MP6 Graphics | ||
| Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders | |||
| Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps | |||
| Supports multiple“secured”video decoding sessions and simultaneous decoding and encoding | |||
| H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | |||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60f | |||
| AVS2-P2 Profile up to 4Kx2K@60fps | |||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |||
| H.264 MVC up to 1080P@60fps | |||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | |||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |||
| RealVideo 8/9/10 up to 1080P@60fps | |||
| Display | HDMI 2.1 output up to 4K@75Hz | ||
| HDMI 3D video formats | |||
| HDMI HDCP 2.2 | |||
| AV(CVBS) 480i/576i | |||
| Memory | 4GB （LPDDR4） | ||
| Storage | 64GB（eMMC） | ||
| Extended USB Mechanical Hard Disk 2.5/3.5inch 4TB Storage | |||
| Extended Storage TF card | |||
| Network | 2T2RWIFI IEEE 802.11 a/b/g/n/ac 2.4G 5.8G | ||
| LAN 1000M | |||
| Bluetooth 4.1 | |||
| Interface | USB3.0 | 2* USB Port | |
| USB2.0 | 1* USB Port | ||
| HDMI | 1*HDMIA Type Port | ||
| RJ45 | 1*RJ45 (1000Mbps) | ||
| AV(CVBS) | 1*Headphone microphone jack | ||
| TF Card | 1*MicroSD card Port | ||
| DC-in | 1*DC in Port | ||

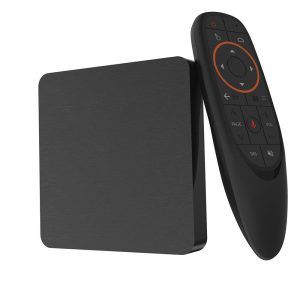

| Remote control | Standard Infrared Remote（IR） | ||
| Extended 2.4G Remote | |||
| LEDdisplay | GreenLED display | ||
| Upgrade OS | 1* Upgrade button | ||
| Software OS | Android 9.0 | ||
| Adapter | 12V-1.5A 18W Certification
Input: 100-240V~50/60Hz , Output:12V 1.5A |
||
| Work Environment | -10°C–45°C，30%–90% Humidity | ||
| Storage Environment | -20°C–60°C，10%–90% Humidity | ||
| Accessories | 1*Adapter12V 1.5A | ||
| 1*HDMI Cable 80CM | |||
| 1*Manual | |||
