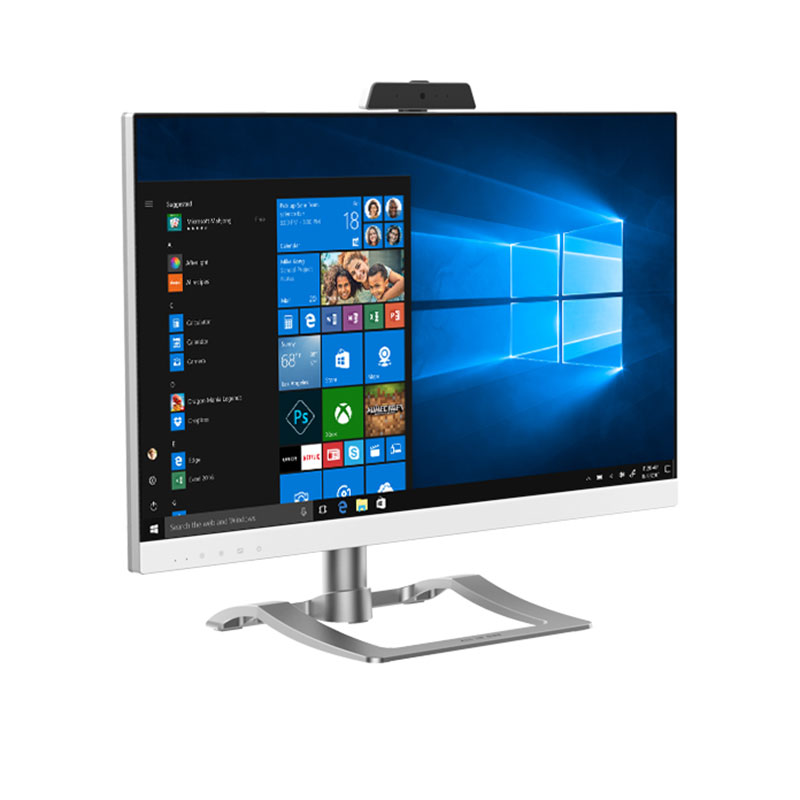

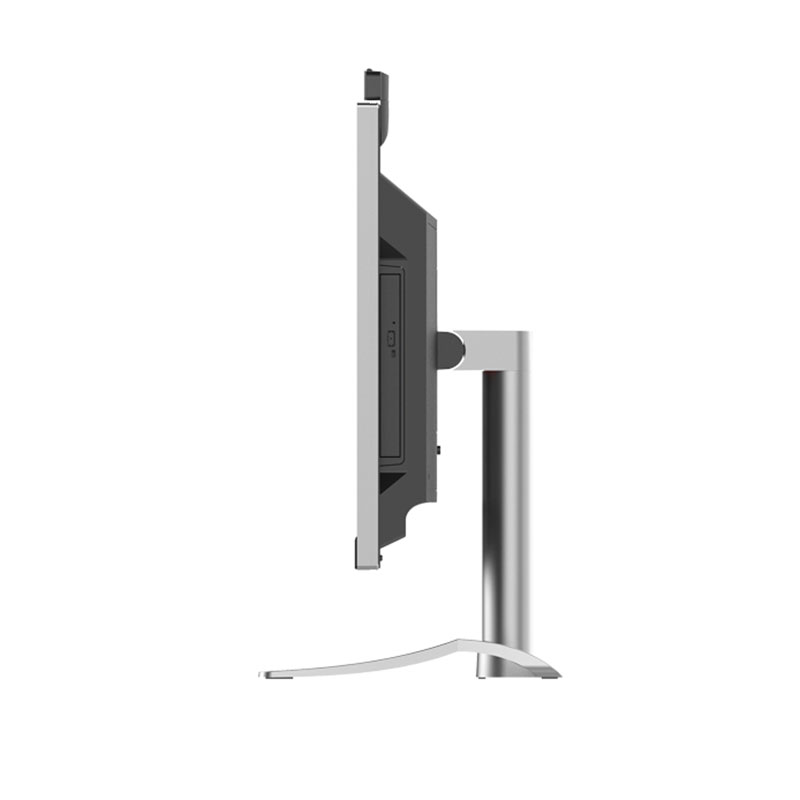

支持Mini ITX主板兼容的Windows电脑一体机，有23.8和21.5两个尺寸可选。支持I7\I5\I3等多种平台配置，支持AMD平台。接口齐全，自带摄像头。可根据用户需求定制产品，支持OEM和ODM定制 。
| Model name | ALL IN ONE |
|---|---|
| Form Factor | Thin Mini ITX |
| LCD | 23.8″ & 21.5″ |
| CPU | Support Intel Kaby Lake-G I7-8709G & I5-8305G Processors
Support Intel® for 8th/7th/6th Generation Core™ i7/Core™ i5/Core™i3, Pentium®/Celeron® Up to 65W Desktop Processors Support Intel Gemini Lake/Apollo Lake/Braswell Pentium/Celeron SOC Processors Support AMD Ryzen & 7-Gen A-Series / Athlon™ Processo |
| Motherboard | Intel B360/H310/H310C/H110/J3160 Thin mini ITX
AMD A320 Thin mini ITX |
| Memory | 2x DDR4 SO-DIMM 2400GHz Support Maxmium 32G Memory |
| WIFI | AzureWave AW-NB165NF M.2 |
| Camera | Front 2.0M |
| Base | Metal |
| HD Grasphics | Intel® HD Graphics |
| Speaker | Built-in 2x 3W stereo speakers |
| Bluetooth | Bluetooth 4.0 |
| SSD M.2 Slot | 1x M.2 2280/2260/2242 Slot |
| HDD SATA port | Support 2x SATA 2.5 Inch HDD |
| ODD SATA port | Support 1x SATA 12.7/9.5mm ODD |
| Net Work | 10/100/1000M LAN |
| I/0 | 1 * DC Jack (19V/6.32A) |
| 1 * HDMI Port | |
| 1 * VGA Port | |
| 1 * Ethernet LAN | |
| 1 * COM Port (Optional) | |
| 2 * USB 3.0 | |
| 2 * USB 2.0 | |
| 1 * Micphone Jack | |
| 1 * Headphone Jack | |
| Power Supply | 1* 120W Power adaptor outside or 1* 150W Power supply inside |
| Dimension | 538mm (L)*328mm (H)*55mm (D) For T24
488mm (L)*300mm (H)*55mm (D) For T22 |
| OS | Windows 10 |
