一款专为品牌运营商定制的安卓网络机顶盒，整体ID设计简洁大方，机身表面适用于多种喷涂工艺，呈现出不同的感官效果。RK3229是一款支持4K视频硬解码的SoC芯片方案，支持4K@60帧的硬解码。同时RK3229也是目前主流的机顶盒方案，出货量非常大，产品质量稳定。此款网络机顶盒已经量产，支持OEM和ODM定制。可根据需求定制软件，支持品牌信息定制（如开机动画、品牌型号、预置APP等）以及系统功能修改，也可为客户重新设计硬件以满足场景需求。

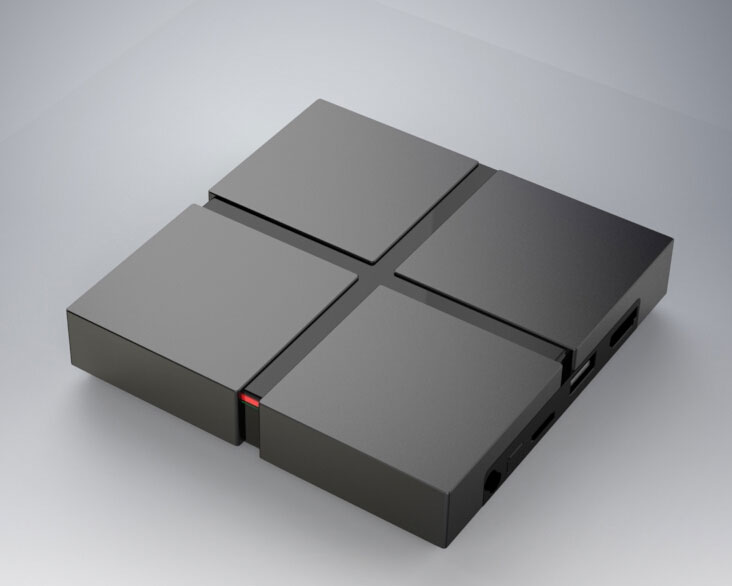

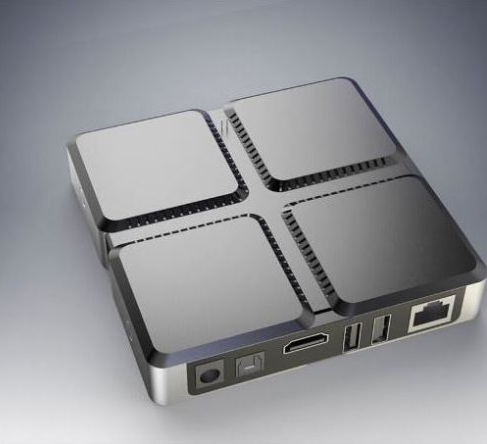

RK3229安卓网络机顶盒 六视图
此款安卓机顶盒定位高端，做工用料均属一流，适合品牌运营使用。有多种UI界面可选，也可根据客户要求重新制作UI，优化用户体验，提高品牌价值，做品牌的差异化运营。
RK3229 安卓 OTT BOX UI界面
RK3229 安卓网络机顶盒主要规格参数：
| Hardware Spec: | |||||||
| Operation System | Android 5.1.1/6.0.1 | ||||||
| Language | Chinese,English…Multi-Language support | ||||||
| Chipset | RK3229 28nm Cortex-A7 Quad Core up to 1.5G Hz | ||||||
| GPU | Mali400 | ||||||
| SD RAM | DDRIII 1G | Optional:2G | |||||
| Nand Flash | 8GB （EMMC) | Optional:16G | |||||
| Network | 10M/100M | ||||||
| Wifi & Bluetooth | AP6212，2.4GHz 802.11 b/g/n Bluetooth4.0 | Optional: AP6255 | |||||
| Storage Extension | Support MicroSD(TF) card，Max to 128GB | ||||||
| Power Supply | DC 5V/2A | ||||||
| Interface: | |||||||
| HDMI Output | 1xHDMI (A type Female)， HDMI2.0, Support 4K×2K decode output | ||||||
| USB Port | 3xUSB Host，1xOTG | ||||||
| Fibre-optical Output | 1xSPDIF | ||||||
| Card Readere | 1xTF | ||||||
| AV Out | 1×3.5mm earphone Jack | ||||||
| Network port | 1xRJ45 | ||||||
| Power Supply | 1xDC Jack | ||||||
| Antenna | Internal antenna | ||||||
| Media Parameter: | |||||||
| Video Decoder | Full video format decoding support.Support format H.265,H.264,VP9,H.263, MPEG-1, MPEG-2, MPEG-4,AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC | H.265 4096*2304 10Bit 60fps 200Mbps H.264 4096*2304 10Bit 30fps 250Mbps VP9 4096*2304 8Bit 30Fps 200Mbps MPG4 1920*1080 60fps MPG2 3840*2160 30fps |
|||||
| Video output | HDMI output： Support 4Kx2K ( 4096*2304) @60HZ AV output：PAL & NTSC |
||||||
| Coversion Support | BT2020/Rec.709/Rec.601 | ||||||
| H.265 Data Rata: | Up to 60fps | ||||||
| Video Encoder | H.264,MOV,3GP RV, VP6/VP8, Sorenson Spark, MVC |
||||||
| Audio Container: | Support MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP…etc Audio formats.Muliti -EQ mode，Support Synchronized lyrics and full-page lyric display | ||||||
| Audio Out | HDMI output data directly, simulation R/L audio output, optical fiber digital audio output | ||||||
| Image browser | Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format.Maximum resolution up to 8176*8176 | ||||||
| Text-Reading | upport TXT、LRC、PDF、Html、Htm、EPUB…etc formats(Depends on APK install) | ||||||
| Software Extension | Support Google Play & APK install, KODI(NTMC) | ||||||
| Protocol | Support DLNA,Miracast Protocol,Support DRM requirement.airplay Audio push | ||||||
| Remote Control | Support Smart phone remote control、BT, 2.4GHZ wireless air mouse/Remote controller | ||||||
| Others Parameters | |||||||
| Operationg Temperature: | -10~40℃ | ||||||
| Storage Temperature: | -20~50℃ | ||||||
| Humidity environment | 5%-90%(No condensation) | ||||||
| Certification | CE，Rohs，FCC | ||||||
| Package | |||||||
| Dimension | 115*115*23mm | ||||||
| Net Weight | 200g | ||||||
| Carton Box Size | 162*162*80mm | ||||||
| Accessory List | |||||||
| 1.Standard Package: 1xManual、1xAdapter(DC 5V/3A),1xHDMI Cable,1x IR Remote Controller,1xUSB line. 2.Optional Package: 1×2.4G Air Mouse, 1×2.4G Wireless mouse and keyboard. |
|||||||
