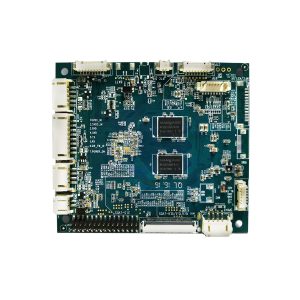

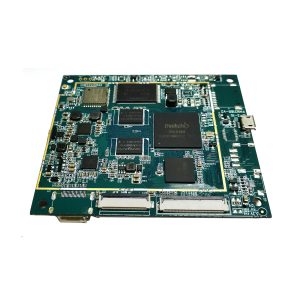

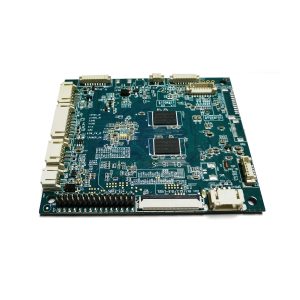

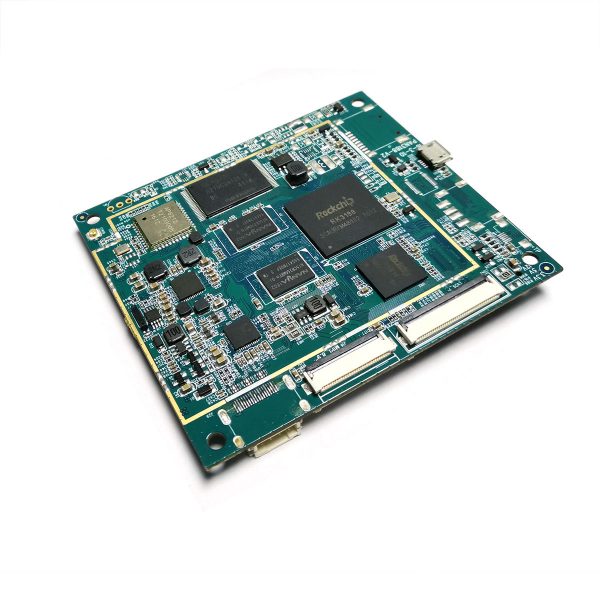

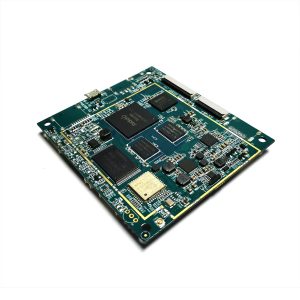

PAN3100是一款面向物联网行业的RK3188嵌入式主机，适合作为物联网项目的开发主板使用。此主板体积小巧，适合嵌入设备内部使用，板载接口丰富，数据通讯端口齐全。支持MIPI屏幕支持LVDS屏幕，支持拓展POE供电和NFC模块。此款RK3188主板已进行过多次量产，质量稳定，可为用户提供ODM和OEM定制服务。
RK3188嵌入式主机主要规格参数
| Item | Detail Description | ||
| Main Chip |
RK3188 |
CPU | Quad Core Cortex-A9 up to 1.6GHz |
| GPU | l Mali400 GPU with up to 600MHz
l Support OpenGL ES1.1/2.0, Open VG1.1 |
||
| DDR3 | *4 | 1GB | |
| Flash | *1 | 8G Flash | |
| DC IN | DC IN 12V/1A | ||
| USB Host | *1 | USB Host *1 | |
| Micro USB/ OTG | *1 | Micro USB/ OTG *1 | |
| TF card socket | *1 | Extend TF card connector *1 | |
| TP | *1 | 1.27mm 8Pin *1 | |
| Camera socket | *1 | Camera female socket *1 | |
| UART | *2 | UART3 | |
| MIPI | *1 | 8.9” MIPI connector | |
| LVDS | *2 | 7” LVDS connector
10.1”/ 13.3”/ 15.6” LVDS connector 21.5” LVDS connector |
|
| Back Light connector | *1 | 6Pin back light base for LVDS | |
| ANT connector | *1 | Used for connect ANT | |
| WIFI&BT | *1 | Support | |
| RTC battery base | *1 | RTC battery base | |
| Speaker | *1 | 4Pin speaker connector | |
| POE | *1 | POE sub board | |
| NFC | *1 | NFC sub board | |
