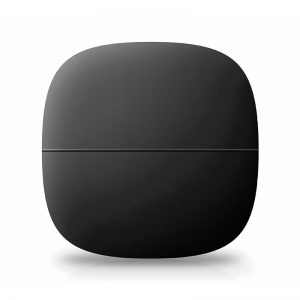

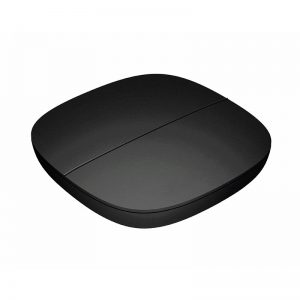

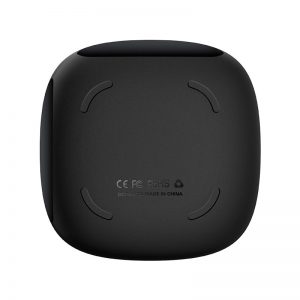

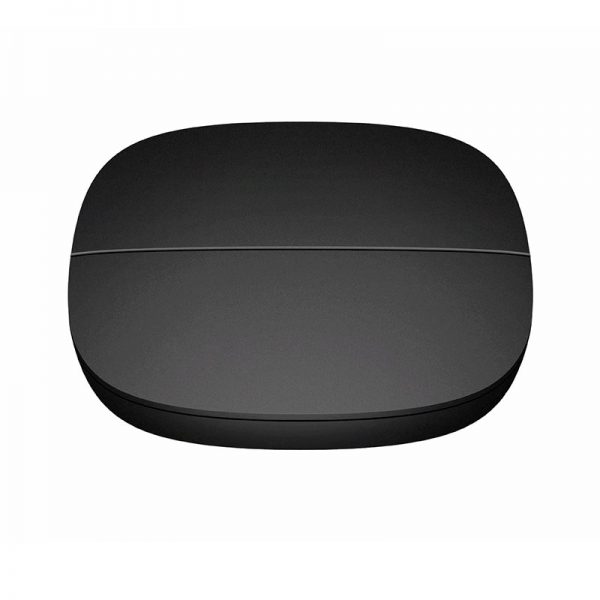

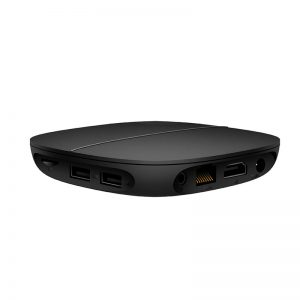

一款采用Hi3798M V110芯片方案的安卓9.0智能电视盒子，支持定制。
| Model No.: | Hi3798M V110 | Model Name: | Android – Quad TV box |
| Hardware Spec: | |||
| CPU | Hi3798M V110 High-performance Quad-core 64 bits ARM CortexA53 | ||
| GPU | High-performance Quad-core GPU Mali450 | ||
| SDRAM | LPDDR4 1GB/2GB | ||
| EMMC Flash | 8GB | ||
| Wifi | 802.1.1 b/g/n 2.4G | ||
| SPDIF | / | ||
| Interface: | |||
| HDMI Out | HDMI2.0 to support maximum 4Kx2K display | ||
| USB Port | 2 High speed USB 2.0,support U DISK and USB HDD | ||
| Card Reader | TF Card reader | ||
| Data Output | / | ||
| AV Out | AV(3 in 1) port | ||
| Lan | RJ45 10M/100M | ||
| Power Supply | DC Jack 5V/2A | ||
| Software Spec: | |||
| Operation System | Android 9.0 | ||
| Decoder Formats | 4Kx2K@30fps,H.265,MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10,VP9 Profile-2 | ||
| Video Formats | H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV | ||
| Music format | MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV | ||
| Photo format | JPEG/BMP/GIF/PNG/TIFF | ||
| DLNA | DLNA files sharing | ||
| Language | English/French/German/Spanish/Italian etc. 24 languages | ||
| Network Functions | Online movies | ||
| Others Parameters: | |||
| Operationg Temperature | -10~40℃ | ||
| Storage Temperature | -20~50℃ | ||
| Humidity environment | 5%-90%(No condensation） | ||
| Package ： | |||
| machine weight(kg) | Packaged weight(kg) | ||
| machine size(mm) | 97*97*21 | Packaged size(mm) | 161*103*62 |
| Carton size(30pcs) | 340*335*330 | Loading for 30HQ | |
| Packing accessories ： | |||
| 1、User manual 2、5V/2A adapter 3、HDMI cable 4、remote control 5、Giftbox packing |
|||
