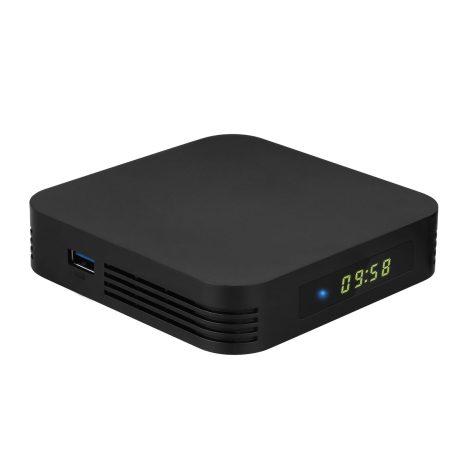

一款采用全志H728芯片方案的高性能智能媒体播放器（OTT BOX），具备强大的8K解码能力，面向外贸市场。它采用Allwinner H728芯片组，搭载Octa-core ARM Cortex A55 CPU和Mali G57-MC1 GPU，确保了卓越的处理速度和图形渲染能力。运行开放的安卓14操作系统，支持多国语言，可自由安装卸载软件，拓展功能。
关键特性
- 高性能处理器：Allwinner H728，Octa-core ARM Cortex A55架构，为高强度计算任务提供强大动力。
- 先进的图形处理：Mali G57-MC1 GPU，支持流畅的高清视频播放和图形处理。
- 大容量存储：标配4GB RAM和32GB ROM，可选配2GB/16GB/64GB，满足不同存储需求。
- 多语言支持：Android 14操作系统，支持多语言，适应全球市场。
- 8K解码技术：支持H265 Main10@L5.1、VP9、H.264等多种视频解码格式，最高可达8K@24fps。
技术参数
| Product Model | OTT BOX | |||
| A-media ID/Mainboard model | ||||
| Basic parameters | ||||
| CPU | Chipset | Allwinner H728 | ||
| Architecture | Octa-core ARM Cortex A55 | |||
| GPU | Chipset | Mali G57-MC1 | ||
| RAM | Capacity | 4GB (2GB Optional) | ||
| ROM | Capacity | 32GB (16/64GB Optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| H265 Main10@L5. 1 decoder up to 4K@60fps or 8K@24fps | ||||
| VP9 decoder up to 4K @ 60fps | ||||
| H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps | ||||
| Multi-format 1080p@60fps video playback, including VP8, MPEG1/2 SP/MP, MPEG4SP/ASP, AVS+/AVS JIZHUN | ||||
| Video encoder: | ||||
| H.264 encoder , up to 4K @ 25fps MJPEG encoder , up to 4K @ 15fps JPEG encoder , up to 8K x 8K resolution |
||||
| Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Option:IEEE802. a/b/g/n/ac IEEE802. a/b/g/n/ac/ax |
||
| Frequency | 2.4GHZ ~ 5.8GHZ | |||
| Antenna Type | Inside antennas | |||
| Bluetooth | Bluetooth | BT5.0+ | ||
| Interface | ||||
| Charge | DC connector | DC 5V- 2A | ||
| Video output | HDMI | 1* 4K 2K Output, HDMI 2.0a | ||
| AUDIO | AUDIO OUT | |||
| OPTCAL | / | 1 * SPDIF | ||
| Ethernet | Ethernet | 1000M | ||
| TF Card | External memory | 1* TF Card | ||
| USB port | USB Host | 2* USB 2.0+1*USB3.0 | ||
| POWER | KEY | Power off&Power on | ||
| Update | KEY | Update key | ||
| Others | RTC | Optional | ||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 140x90x20(mm) | |||
| Weight | 0.15Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 168×136×80mm | |
| Gift Box | *1 | Carton Size(mm) | 420*350*290mm | |
| Remote control | *1 | Qty Per Carton(pcs) | 20pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.512Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 10.24Kg | |
此款OTT BOX已经量产，可根据客户需求定制产品，支持OEM和ODM定制。
