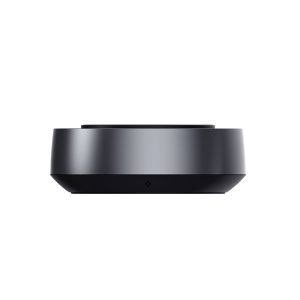

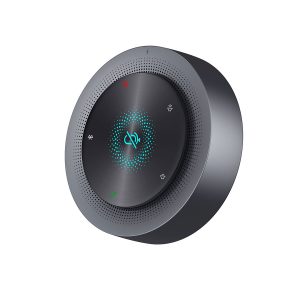

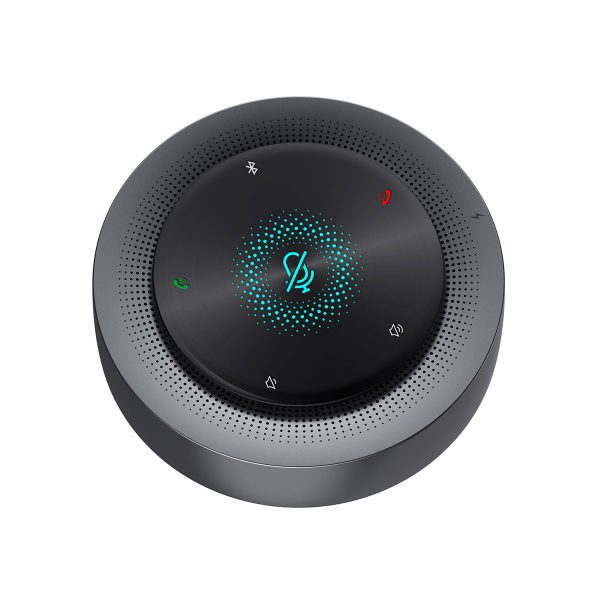

一款专为视频会议设计的蓝牙无线全向麦克风一体机，集成4通道阵列麦克风和4W大功率扬声器，最长拾音距离可达7米，满足拾音和扬声的双重需求。支持蓝牙5.1无线通信，内置大容量锂电池，使用便捷，续航时间高达8小时。采用高通QCC5125芯片，运行嵌入式系统，提供卓越的音频处理能力，工作稳定。此款全向麦克风可提供定制服务，接受OEM和ODM订单。
| Hardware /Software | ||
| System | OS | Embedded system |
| OS Upgradable | DFU | |
| Application Processor | QCC5125 | |
| CPU Clock Rates | 80MHz | |
| RAM | 56Kb | |
| Extend Storage | 64Mb | |
| Wireless transmission | Bluetooth | Bluetooth Version: Bluetooth 5.1 Bluetooth Technology: Bluetooth Low Energy sensor hub, Dual-mode Bluetooth |
| TWS | W/O | |
| NFC Tag | W/O | |
| Button | Touch Button | 6pcs Off hook/power, On hook, Mute, Volume up, Volume down, Bluetooth |
| Audio | Speaker | 1pcs, 4Ω4W speaker |
| Mic and AEC | 2*2 digital microphone, 7 meters voice recongnition 4 way adaptive Beamforming, support circular array and linear array; Full duplex AEC to support interrupt (up to 50dB echo cancellation optimization) Noise suppression (up to 15dB suppression optimization) |
|
| Extended Interface | DC-in | AC adapter (100-240 V AC in & 5V 3A DC out) |
| USB | Type-C*1 Compliant with USB 2.0 ,Power supply by USB2.0 Skype For Business, Teams HID support |
|
| LED | RGB LED | 30 *RGB LEDs showing call status |
| LED | 2 LEDs for Power mode(with white/green LED indicating power mode under touch button) and BT status(with blue LED indicating pairing, reconnect and connection status under touch button) | |
| Blue LED | 4 white LEDs showing battery status | |
| Software | UI | Refer to the PRD |
| Battery | Lithium Battery | 2600mAh 3.7V, Fulfill talk time of minimum 8h |
| Climatic Requirements |
Storage Temp. | -20℃~70℃ |
| Storage Humidity | 0 to 90%RH | |
| Operating Temp. | 0℃~50℃ | |
| Operating Humidity | 5~95%RH | |
| MD | Dimensions | 124*124*42 |
| Weight | TBD | |
| Material | Metal+plastic | |
| Color | Gray | |
| Labels | TBD | |
| Kensington Slot | No | |
| In the Box | Adapter | 100-240 V AC/ 5V 3A DC adapter |
| Adapter | Yes( Wordwide available) | |
| USB Cable | 1.5m Type-A to Type-C | |
| Quick Start Guide | TBD | |
| Important Notice | TBD | |
| User Guide | TBD | |
| Device | Speakerphone | |
