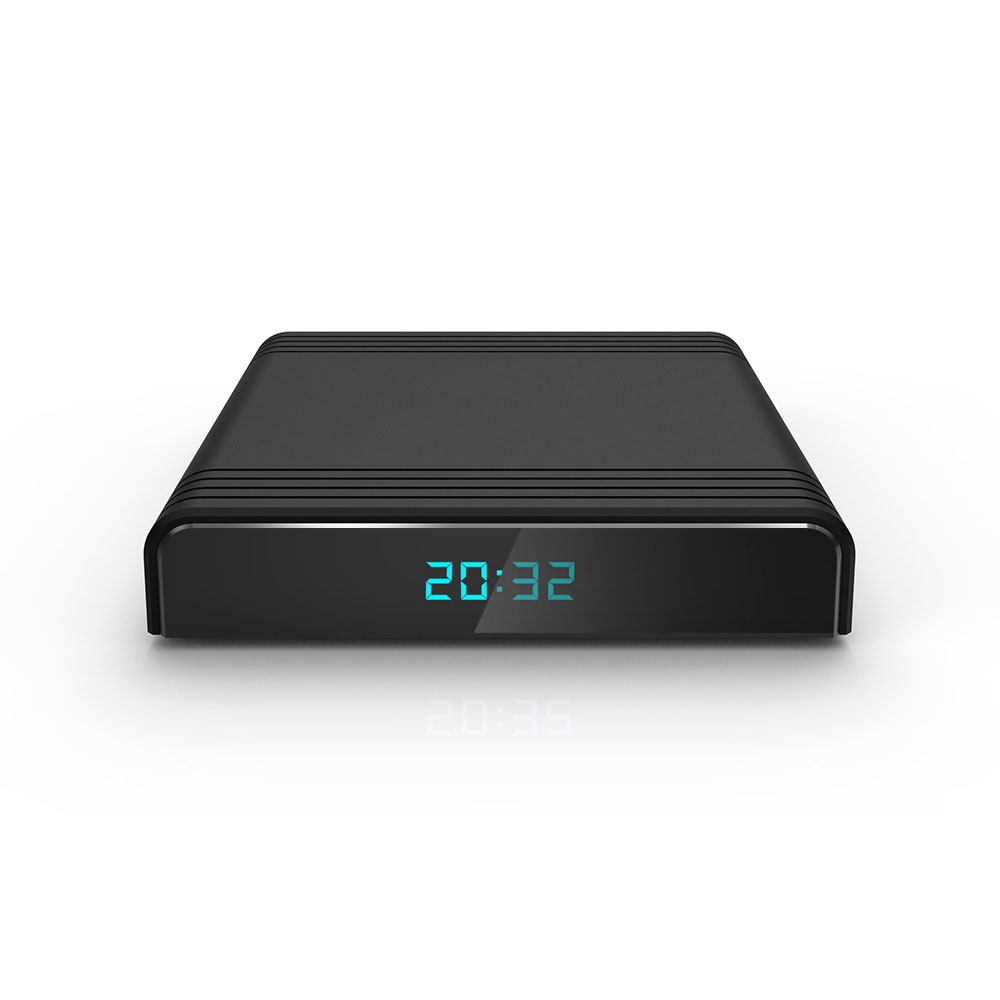

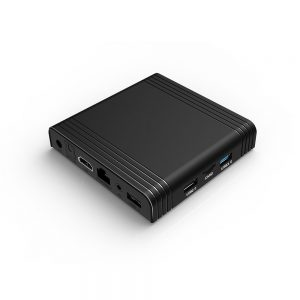

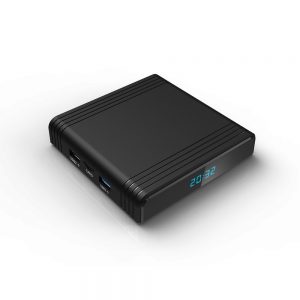

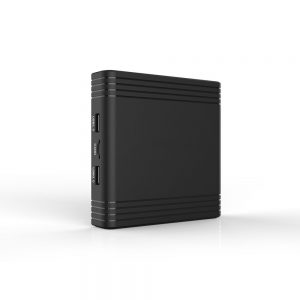

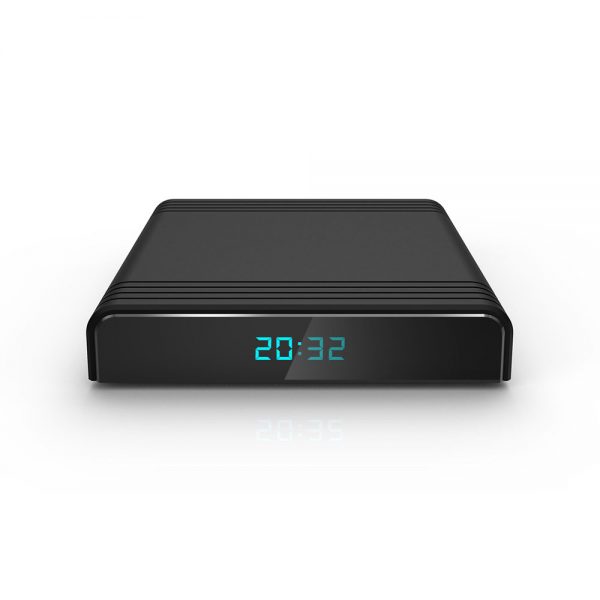

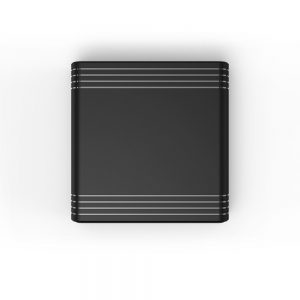

一款支持8K视频解码的智能电视盒子，采用Amlogic S905X3芯片方案，集成四核A55架构处理器和G31图形处理器，支持全格式4K视频解码，支持8K视频解码和输出。此款电视盒子运行纯净版安卓9.0系统，可自由安装卸载软件。常用接口齐全，除了作为家庭影音的播放器使用，也可作为广告机的控播主机使用。产品已经量产，接受定制，支持OEM和ODM定制。
| S905X3 Smart TV BOX | ||||||||
| CPU | Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU | |||||||
| GPU | G31™ MP2 GPU processor | |||||||
| Memory | LPDDR4: 2GB/4GB | |||||||
| Flash | eMMC：32GB(Option: 16GB/64GB ) | |||||||
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G | |||||||
| Bluetooth | BT ; Support Voice Remote | |||||||
| Moudle | Plastic : Black Color | |||||||
| I/O | 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output | ||||||
| 1*AV OUT | 480i/576i standard definition output | |||||||
| 2*USB | 1 * USB 3.0 ; 1*USB 2.0 | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface;Support 10/100M/1000M | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| Power | DC 5V/2A； | |||||||
| Software | ||||||||
| OS | Android 9.0 | |||||||
| Video | – Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders – Support multi-video decoder up to 4x1080P@60fps – Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding – Video/Picture Decoding – VP9 Profile-2 up to 8Kx4K@24 fps – H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps – AVS2-P2 Profile up to 8Kx4K@24 fps – H.264 AVC HP@L5.1 up to 4Kx2K@30fps – MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) – WMV/VC-1 SP/MP/AP up to 1080P@60fps – AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps – MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) – MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) – RealVideo 8/9/10 up to 1080P@60fps – Multiple language and multiple format sub-title video support – MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) – Supports JPEG thumbnail, scaling, rotation and transition effects – Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
|||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Low-power VAD Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
|||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
| Apps | Apps download freely form android market、amazon app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||
| Packing | Product dimension | 105*105*28(MM) | ||||||
| Qty per unit packing | 1pc | |||||||
| Unit packing: (LxWxH) | 205*140*50(MM) | |||||||
| Unit packing (G.W.) | 400KG | |||||||
| Qty per export carton | 20PCS | |||||||
| Export carton (WxHxL) | 42*27*30.5CM | |||||||
| Export carton (G.W.) | 8.6KG | |||||||
| Accessories ： | ||||||||
| 1、HDMI cable *1 | ||||||||
| 2、IR Remote *1 | ||||||||
| 3、User Manual *1 | ||||||||
| 4、Package box *1 | ||||||||
| 5、Power adapter *1 | ||||||||
