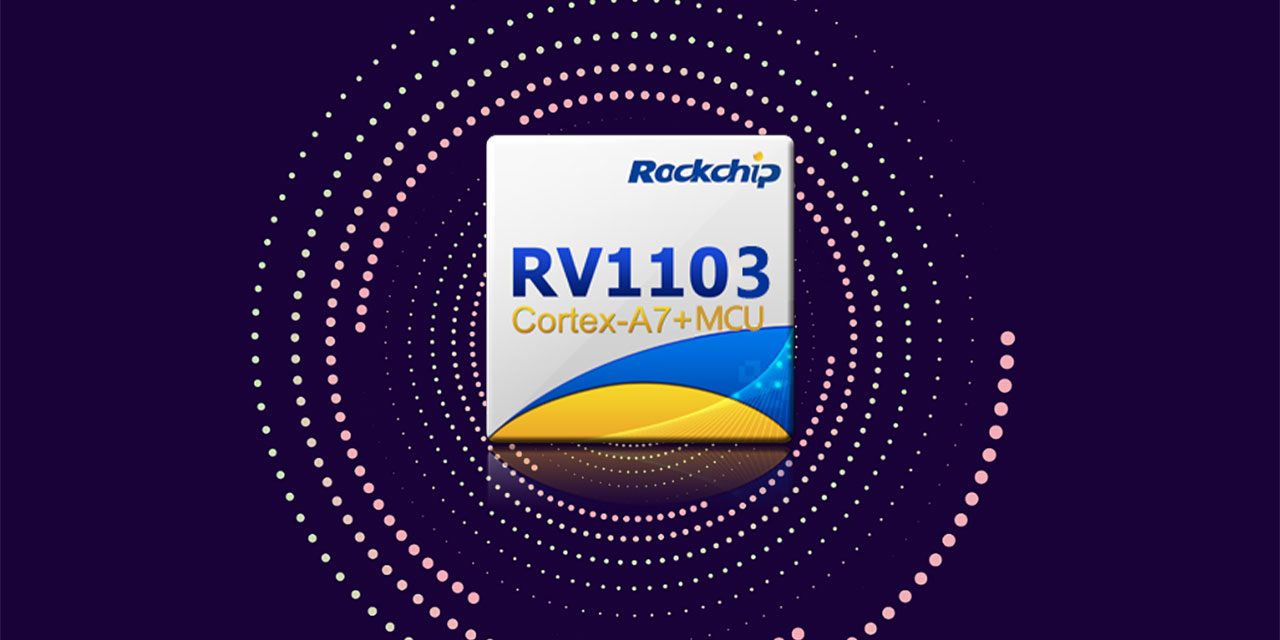

RV1103是瑞芯微旗下一款用于IPC的高度集成的视觉处理器SoC，尤其适用于AI机器视觉应用。RV1103采用单核ARM Cortex-A7 32位内核，集成了NEON和FPU。有一个32KB的I-cache、32KB的D-cache和128KB的统一二级缓存。内置NPU支持INT4/INT8/INT16混合操作，计算能力高达0.5TOPS，可支持基于TensorFlow/MXNet/PyTorch/Caffe等一系列框架转换的网络模型。
RV1103推出了全新一代基于硬件的最大400万像素ISP（图像信号处理器）。它实现了许多算法加速器，如HDR、3A、LSC、3DNR、2DNR、锐化、dehaze、gamma校正等。与两个MIPI CSI（或LVD）合作，用户可以构建一个系统，同时接收来自两个摄像头传感器的视频数据。
RV1103中嵌入的视频编码器支持H.265/H.264编码。它还支持多流编码。借助这一功能，来自摄像头的视频可以以更高的分辨率进行编码，并存储在本地内存中，同时传输到另一个低分辨率视频到云存储。为了加速视频处理，还嵌入了一个带有22个计算单元的智能视频引擎。
RV1103有一个内置的16位DRAM DDR2，能够维持苛刻的内存带宽。它还集成了内置POR、音频编解码器和MAC物理层。
1.2.1 Application Processor
Single core ARM Cortex-A7
Full implementation of the ARM architecture v7-A instruction set, ARM Neon Advanced SIMD
Separately Integrated Neon and FPU
32KB L1 I-Cache and 32KB L1 D-Cache
Unified 128KB L2 Cache for Cortex-A7
TrustZone technology support
One isolated voltage domain to support DVFS
1.2.2 Memory Organization
Internal on-chip memory
BootRom
◆ Support system boot from the following device:
➢ SPI interface
➢ SD/MMC interface
◆ Support system code download by the following interface:
➢ USB interface
➢ UART interface
256KB Share Memory
8KB PMU SRAM
RV1103G1 SIP 512Mb DDR2
External off-chip memory
SD/MMC Interface
◆ Compatible with SD3.0, MMC ver4.51
◆ Data bus width is 4bits
Flexible Serial Flash Interface (FSPI)
RV1103 Datasheet Rev 1.1
◆ Support transfer data from/to serial flash device
◆ Support 1bit, 2bits or 4bits data bus width
1.2.3 System Component
MCU
MCU in VD_CORE integrate 16KB Cache
Integrated Programmable Interrupt Controller, all IRQ lines connected to GIC for CPU also connect to MCU
Integrated Debug Controller with JTAG interface
CRU (clock & reset unit)
Support total 4 PLLs to generate all clocks
One oscillator with 24MHz clock input
Support clock gating control for individual components
Support global soft-reset control for whole chip, also individual soft-reset for each component
PMU (power management unit)
Multiple configurable work modes to save power by different frequency or automatic clock gating control or power domain on/off control
Lots of wakeup sources in different mode
Support 3 separate voltage domains，VDD_ARM,VDD_LOGIC,VDD_PMU.
Timer
Support 2 secure timers with 64bits counter and interrupt-based operation
Support 6 non-secure timers with 64bits counter and interrupt-based operation
Support two operation modes: free-running and user-defined count for each timer
Support timer work state checkable
PWM
Support 12 on-chip PWMs (PWM0~PWM11) with interrupt-based operation
Programmable pre-scaled operation to bus clock and then further scaled
Embedded 32-bit timer/counter facility
Support capture mode
Support continuous mode or one-shot mode
Provides reference mode and output various duty-cycle waveform
Optimized for IR application for PWM3, PWM7, PWM11
Watchdog
32-bit watchdog counter
Counter counts down from a preset value to 0 to indicate the occurrence of a timeout
WDT can perform two types of operations when timeout occurs:
◆ Generate a system reset
◆ First generate an interrupt and if this is not cleared by the service routine by the time a second timeout occurs then generate a system reset
One Watchdog for non-secure application
One Watchdog for secure application
Interrupt Controller
Support 121 SPI interrupt sources input from different components inside RV1103
Support 16 software-triggered interrupts
Input interrupt level is fixed, high-level sensitive or rising edge sensitive
Support different interrupt priority for each interrupt source, and they are always software-programmable
DMAC
RV1103 Datasheet Rev 1.1
Micro-code programming-based DMA
Linked list DMA function is supported to complete scatter-gather transfer
Support data transfer types including memory-to-memory, memory-to-peripherals, peripherals-to-memory
Totally three embedded DMA controllers for peripheral system
Each DMAC features:
◆ Support 8 channels
◆ 32 hardware requests from peripherals
◆ 2 interrupt output
◆ Support TrustZone technology and programmable secure state for each DMA channel
Secure System
Embedded one cipher engines
◆ Support Link List Item (LLI) DMA transfer
◆ Support SHA-1, SHA-256/224, MD5 with hardware padding
◆ Support HMAC of SHA-1, SHA-256, MD5 with hardware padding
◆ Support AES-128, AES-192, AES-256 encrypt and decrypt cipher
◆ Support DES and TDES cipher
◆ Support AES ECB/CBC/OFB/CFB/CTR/CTS/XTS/GCM/CBC-MAC/CMAC mode
◆ Support DES/TDES ECB/CBC/OFB/CFB mode
◆ Support up to 4096 bits PKA mathematical operations for RSA/ECC/SM2
Support generating random numbers, one secure only engine, another one security configurable
Support secure OTP
Support secure debug
Support secure OS
Except CPU, the other masters in the SoC can also support security and non-security mode by software-programmable
Some slave components in SoC can only be addressed by security master and the other slave components can be addressed by security master or non-security master by software-programmable
System SRAM (share memory), part of space is addressed only in security mode
External DDR space can be divided into 16 parts, each part can be software-programmable to be enabled by each master
Mailbox
One Mailbox in SoC to service CPU and MCU communication
Support four mailbox elements, each element includes one data word, one command word register and one flag bit that can represent one interrupt
Provide 32 lock registers for software to use to indicate whether mailbox is occupied
Decompression
Support for decompressing GZIP files
Support for decompressing data in DEFLATE format
Support for decompressing data in ZLIB format
Support the limit size function of the decompressed data to prevent the memory from being maliciously destroyed during the decompression process
1.2.4 Video CODEC
Video Encoder
H.265/HEVC Main Profile, level 5.0
H.264/AVC High Profile, level 5.0
Support multi-channel encoding with performance up to 4-megapixel@30fps
RV1103 Datasheet Rev 1.1
JPEG baseline, up to 4-megapixel @60fps in standalone mode, resolution up to 8192 x 8192
Bitrate up to 60Mbps
Six bit rate control modes (CBR, VBR, FIXQP, AVBR, QPMAP, and CVBR)
Support YUV420 and YUV400 format input
Intelligent encoding mode
8-area OSD
YUV/RGB video source with crop, rotation and mirror
Ultra-low delay encoding
1.2.5 Neural Process Unit
Neural network acceleration engine with processing performance up to 0.5 TOPS
Support integer 4, integer 8 and integer 16 operation
Support creating simple custom operators
Support deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, etc.
1.2.6 Rockchip Intelligent Video Engine (RKIVE)
GMM
Support 1 to 5 gaussian model
BGM (base on codebook)
Support 3 codebook model
Canny
Staging buffer stride require 64 pixel align
Support 3X3 and 5×5 template coefficient
CCL
Support max to 254 connected regions
Support 4-connected and 8-connected region
Stcorner
Support max to 500 corner sort output
LK
Support max to 500 corner input
Support 1~4 optical flow layers
Integral
Require all the buffer base is 16bytes align
LBP
Support simple and absolute value comparison mode
Filter
Support 3X3 and 5×5 mode
Sobel
Support 3X3 and 5×5 mode
Morph
Support eroding and dilating mode
Denoise Filter
Support minimum/median/maximum 3 types filter
DMA
Support direct copy mode
Support interval copy mode
CSC
Support rgb2yuv, yuv2rgb, rgb2hsv, yuv2hsv
Support 601 and 709 format, full and limit range
Hist/eqhist
Support hist only, eqhist only, hist + eqhist 3 types mode
Logic OP
Support logic and, logic or, logic xor, add, sub, absolute difference
Mag and Ang
Calculation of the image gradient magnitude and direction
Morph
RV1103 Datasheet Rev 1.1
Support eroding and dilating mode
NCC
Calculation of the image normalized cross-correlation
Cast
Data linear transformation
Sad
Support sad size is 4×4, 8×8 and 16×16
Threshold
Convert grayscale into a binary image
Map
Support 8bit to 8bit and 8bit to 16bit map operation
1.2.7 Graphics Engine
2D Graphics Engine
Input data:
◆ ARGB/RGB888/RGB565/RGB4444/RGB5551
◆ YUV420/YUV422/YVYU422/YVYU420/YUV422SP10bit/YUV420SP10bit
Output data:
◆ ARGB/RGB888/RGB565/RGB4444/RGB5551
◆ YUV420/YUV422/YUV400/Y4/YVYU422/YVYU420
Pixel Format conversion, BT.601/BT.709
Dither operation
Max resolution: 8192×8192 source, 4096×4096 destination
Scaling
◆ Down-scaling: Average filter
◆ Up-scaling: Bi-cubic filter(source>2048 would use Bi-linear)
◆ Arbitrary non-integer scaling ratio, from 1/16 to 16
Rotation
◆ 0, 90, 180, 270-degree rotation
◆ x-mirror, y-mirror
◆ Mirroring and rotation co-operation
BitBLT
◆ Block transfer
◆ Color palette/Color fill, support with alpha
◆ Transparency mode (color keying/stencil test, specified value/value range)
◆ Two source BitBLT
◆ A+B=B only BitBLT, A support rotate & scale when B fixed
◆ A+B=C second source (B) has same attribute with (C) plus rotation function
Alpha Blending
◆ Comprehensive per-pixel alpha(color/alpha channel separately)
◆ Fading
◆ Support SRC1(R2Y)+SRC0(YUV) -> DST(YUV)
◆ Support DST Full CSC convert for YUV2YUV
OSD Automatic Inversion
◆ Supports OSD sources in ARGB8888/ARGB1555/ARGB444/ARGB2BPP format
◆ Support SRC0 and OSD overlay
Support square mosaic patterns to cover rectangular mosaic areas
1.2.8 Video Input Interface
MIPI Interface
Two MIPI CSI DPHY
◆ Each MIPI DPHY V1.2, 2lanes, 1.5Gbps per lane
◆ Support to combine 2 DPHY together to one 4lanes
1.2.9 Image Signal Processor
Maximum input: 4M @30fps
Minimum input: 256×256
RV1103 Datasheet Rev 1.1
3A: Include Auto Enhance (AE)/Histogram, Auto Focus (AF), and Auto White Balance (AWB) statistics output
EXPANDER: Sensor expander
BLC: Black Level Correction
DPCC: Static/Dynamic Defect Pixel Cluster Correction
PDAF: Phase Detection Auto Focus
LSC: Lens Shading Correction
Bayer-2DNR: Spatial Bayer-raw Noise Reduction
Bayer-3DNR: Temporal Bayer-raw Noise Reduction
CAC: Chromatic Aberration Correction
HDR-MGE: 2-Frame Merge into High-Dynamic Range
HDR-DRC: HDR Dynamic Range Compression, Tone mapping
GIC: Green Imbalance Correction
DeBayer: Advanced Adaptive Demosaic
CCM/CSM: Color Correction Matrix, RGB2YUV, etc.
Gamma: Gamma out correction
Dehaze/Enhance: Automatic Dehaze and effect enhancement
3DLUT: 3D-LUT Color Palette for Customer
LDCH: Lens Distortion Correction only in the Horizontal direction
YUV-2DNR: Spatial YUV Noise Reduction
Sharp: Image sharpening and boundary filtering
CMSK: Privacy cover and mask
Gain: Image local gain
Multi-sensor reuse ISP, 4 sensors for maximum
Bus interface: 32bit AHB configuration, 128bit AXI R/W
Low power, auto-gating for each block
MI R/W burst group to improve memory utilization
MI 3+2 path output, MP stepless scaling, SP/BP scaling under 1080p, MPDS/SPDS fixed 1/16 downscaling
1.2.10 Audio Interface
Audio Codec
Support two 24-bits ADC channels with 90dB SNR for stereo recording from microphone
Support one 24-bits DAC channels with 90dB SNR for stereo playback
Support differential and single-ended microphone or line input
Sampling rate of 8KHz/12KHz/16KHz/24KHz/32KHz/44.1kHz/48KHz/96KHz
1.2.11 Connectivity
SDIO interface
Compatible with SDIO3.0 protocol
4-bit data bus widths
MAC 10/100M Ethernet controller and embedded PHY
Support one Ethernet controllers
Support 10/100-Mbps data transfer rates with the RMII interfaces
Support both full-duplex and half-duplex operation
USB 2.0
Compatible with USB 2.0 specification
Support one USB 2.0 Host/Device
Supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) mode
Support Enhanced Host Controller Interface Specification (EHCI), Revision 1.0
Support Open Host Controller Interface Specification (OHCI), Revision 1.0a
SPI interface
Support 2 SPI Controllers (SPI0-SPI1)
RV1103 Datasheet Rev 1.1
Support two chip-select output
Support serial-master and serial-slave mode, software-configurable
I2C Master controller
Support 5 I2C Master(I2C0-I2C4)
Support 7bits and 10bits address mode
Software programmable clock frequency
Data on the I2C-bus can be transferred at rates of up to 100k bits/s in the Standard-mode, up to 400k bits/s in the Fast-mode
UART interface
Support 6 UART interfaces (UART0-UART5)
Embedded two 64-byte FIFO for TX and RX operation respectively
Support 5bit, 6bit, 7bit, 8bit serial data transmit or receive
Standard asynchronous communication bits such as start, stop and parity
Support different input clock for UART operation to get up to 4Mbps baud rate
Support auto flow control mode for all UART
1.2.12 Others
Multiple groups of GPIO
All of GPIOs can be used to generate interrupt
Support level trigger and edge trigger interrupt
Support configurable polarity of level trigger interrupt
Support configurable rising edge, falling edge and both edge trigger interrupt
Support configurable pull direction (a weak pull-up and a weak pull-down)
Support configurable drive strength
Temperature Sensor (TS-ADC)
Support User-Defined Mode and Automatic Mode
In User-Defined Mode, start_of_conversion can be controlled completely by software, and also can be generated by hardware.
In Automatic Mode, the temperature of alarm (high/low temperature) interrupt can be configurable
In Automatic Mode, the temperature of system reset can be configurable
-40~125°C temperature range and 1°C temperature resolution
Successive approximation ADC (SARADC)
10-bit resolution
Up to 1MS/s sampling rate
2 single-ended input channels
OTP
Support 8K bits Size, 7K bits for secure application
Support Program/Read/Idle mode
Package Type
RoHS QFN88 (body: 9mm x 9mm pin pitch 0.35mm)
RV1103 Datasheet Rev 1.1
